音视频开发_MP4 分解与合成
最近更新：2024-09-23   |   字数总计：4.8k   |   阅读估时：27分钟   |   阅读量：次
  1. 需求分析：
    1. 需求定义
    2. 主要功能分析
  2. 功能一(仅功能Demo)
    1. 效果
  3. 功能二(工程化)
    1. 音频重采样类
    2. 音频编码类
    3. 视频编码类
    4. 封装类
    5. Main Test

需求分析：

需求定义

  1. 功能一：MP4解复用解码并提取出YUV和PCM裸流
  2. 功能二：YUV和PCM裸流编码并合成MP4

主要功能分析

  1. 封装和解复用(MP4格式)
  2. 音频解码与视频解码(AAC与H264)
  3. 音频编码与视频编码(H264与AAC)
  4. 音频重采样(S16 to FLTP & FLTP to S16)

功能一(仅功能Demo)

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
148
149
150
151
152
153
154
155
156
157
158
159
160
161
162
163
164
165
166
167
168
169
170
171
172
173
174
175
176
177
178
179
180
181
182
183
184
185
186
187
188
189
190
191
192
193
194
195
196
197
198
199
200
201
202
203
204
205
206
207
208
209
210
211
212
213
214
215
216
217
218
219
220
221
222
223
224
225
226
227
228
229
230
231
232
233
234
235
236
237
238
239
240
241
242
243
244
245
246
247
248
249
250
251
252
253
254
255
256
257
258
259
260
261
#include <iostream>
extern "C"
{
#include "libavformat/avformat.h"
#include "libavcodec/avcodec.h"
#include "libavformat/avio.h"
}
#include <direct.h>
using namespace std;

// yuv文件输出位置
#define VIDEO_SAVE_PATH "yuv420_720x576_25fps.yuv"
// pcm文件输出位置
#define AUDIO_SAVE_PATH "44.1khz_2ch_s16.pcm"

static char err_buf[128] = {0};
static char* av_get_err(int errnum)
{
    av_strerror(errnum, err_buf, 128);
    return err_buf;
}

void audio_decode(AVCodecContext *dec_ctx, AVPacket *pkt, AVFrame *frame, FILE *outfile)
{
  int data_size;
  int ret = avcodec_send_packet(dec_ctx, pkt);
  if(ret == AVERROR(EAGAIN)){printf("当前状态不接受输⼊，⽤户必须先⽤avcodec_receive_frame() 读取数据帧；\n");}
  else if(ret < 0){printf("提交包发生错误，err:%s,pkt->size=%d\n",av_get_err(ret),pkt->size);return;}
  while(ret >= 0)
  {
    ret = avcodec_receive_frame(dec_ctx, frame);
    if(ret == AVERROR(EAGAIN)||ret == AVERROR_EOF) return;
    else if(ret < 0){printf("解码过程有误！\n");return;}
    data_size = av_get_bytes_per_sample(dec_ctx->sample_fmt);
    if(data_size < 0){printf("计算数据大小失败\n");return;}
    // 打印一些信息
    printf("ar-samplerate: %uHz\n", frame->sample_rate);
    printf("ac-channel: %u\n", frame->channels);
    printf("f-format: %u\n", frame->format); // 格式需要注意，实际存储到本地文件时已经改成交错模式
    // fltp采样格式需要重采样成s16
    if (frame->format == AVSampleFormat::AV_SAMPLE_FMT_FLTP)
    {
        AVFrame* s16_frame = AllocS16PcmFrame(frame->channels, frame->nb_samples);
        if (!s16_frame)
            return;
        AudioResample audio_resampler;
        int ret = audio_resampler.InitFromFLTPToS16(frame->channels, frame->sample_rate, frame->channels, frame->sample_rate);
        if (ret < 0)
        {
            return;
        }
        ret = audio_resampler.ResampleFromFLTPToS16(frame, s16_frame);
        if (ret < 0)
            return;
        data_size = av_get_bytes_per_sample(AV_SAMPLE_FMT_S16);
        if (data_size < 0) { printf("计算数据大小失败\n"); return; }
        for (int i = 0; i < s16_frame->nb_samples * 2; i++) {
            // for (int ch = 0; ch < s16_frame->channels; ch++) //以交错模式写入
                fwrite(s16_frame->data[0] + data_size * i, 1, data_size, outfile);
        }
        FreePCMFrame(s16_frame);
    }
    else {
        for (int i = 0; i < frame->nb_samples; i++) {
            for (int ch = 0; ch < dec_ctx->channels; ch++) //以交错模式写入
                fwrite(frame->data[ch] + data_size * i, 1, data_size, outfile);
        }
    }
  }
}

void video_decode(AVCodecContext *dec_ctx, AVPacket *pkt,AVFrame *frame, FILE *outfile)
{
  int data_size;
  int ret = avcodec_send_packet(dec_ctx, pkt);
  if(ret == AVERROR(EAGAIN)){printf("当前状态不接受输⼊，⽤户必须先⽤avcodec_receive_frame() 读取数据帧；\n");}
  else if(ret < 0){printf("提交包发生错误，err:%s,pkt->size=%d\n",av_get_err(ret),pkt->size);return;}
  while(ret >= 0)
  {
    ret = avcodec_receive_frame(dec_ctx, frame);
    if(ret == AVERROR(EAGAIN)||ret == AVERROR_EOF) return;
    else if(ret < 0){printf("解码过程有误！\n");return;}
    data_size = av_get_bytes_per_sample(dec_ctx->sample_fmt);
    if(data_size < 0){printf("计算数据大小失败\n");return;}
    // 打印一些信息
    printf("width: %u\n", frame->width);
    printf("height: %u\n", frame->height);
    printf("format: %u\n", frame->format);// 格式需要注意
    // 正确写法  linesize[]代表每行的字节数量，所以每行的偏移是linesize[]
    for(int j=0; j<frame->height; j++)
        fwrite(frame->data[0] + j * frame->linesize[0], 1, frame->width, outfile);
    for(int j=0; j<frame->height/2; j++)
        fwrite(frame->data[1] + j * frame->linesize[1], 1, frame->width/2, outfile);
    for(int j=0; j<frame->height/2; j++)
        fwrite(frame->data[2] + j * frame->linesize[2], 1, frame->width/2, outfile);
  }
}

void start_av_decode(AVFormatContext* fmt_context, int video_index, int audio_index)
{
  AVPacket* pkt = av_packet_alloc(); // 使用alloc必须进行free
  AVFrame *decoded_frame = NULL;
  if(!decoded_frame){
    if(!(decoded_frame = av_frame_alloc())){printf("不能分配帧内存\n");return;}
  }
  /* 初始化视频解码器 */
  const AVCodec *v_codec;
  AVCodecContext *v_codec_ctx = NULL;
  enum AVCodecID video_codec_id = AV_CODEC_ID_H264;

  // 查找解码器
  v_codec = avcodec_find_decoder(video_codec_id);
  if(!v_codec){printf("找不到解码器！\n");return;}
  // 分配解码器上下文
  v_codec_ctx = avcodec_alloc_context3(v_codec);
  if(!v_codec_ctx){printf("无法分配解码器上下文！\n");return;}
  v_codec_ctx->pkt_timebase = fmt_context->streams[video_index]->time_base;
  avcodec_parameters_to_context(v_codec_ctx, fmt_context->streams[video_index]->codecpar);
  // 关联解码器和解码器上下文
  if(avcodec_open2(v_codec_ctx, v_codec, NULL) < 0){
    printf("无法打开解码器\n");return;
  }
  FILE* v_out_file = fopen(VIDEO_SAVE_PATH, "wb");

  /* 初始化音频解码器 */
  const AVCodec *a_codec;
  AVCodecContext *a_codec_ctx = NULL;
  enum AVCodecID audio_codec_id = AV_CODEC_ID_AAC;

  // 查找解码器
  a_codec = avcodec_find_decoder(audio_codec_id);
  if(!a_codec){printf("找不到解码器！\n");return;}
  // 分配解码器上下文
  a_codec_ctx = avcodec_alloc_context3(a_codec);
  if(!a_codec_ctx){printf("无法分配解码器上下文！\n");return;}
  // 关联解码器和解码器上下文
  a_codec_ctx->pkt_timebase = fmt_context->streams[audio_index]->time_base;
  avcodec_parameters_to_context(a_codec_ctx, fmt_context->streams[audio_index]->codecpar);
  if(avcodec_open2(a_codec_ctx, a_codec, NULL) < 0){
    printf("无法打开解码器\n");return;
  }
  FILE* a_out_file = fopen(AUDIO_SAVE_PATH, "wb");

  do
  {
    int ret = av_read_frame(fmt_context, pkt); // ！！实际得到的是packet
    if (ret < 0){printf("av_read_frame end\n");break;}
    if (pkt->stream_index == video_index) { // 视频包
        printf("A video packet\n");
        video_decode(v_codec_ctx, pkt, decoded_frame, v_out_file);
    }
    else if (pkt->stream_index == audio_index) // 音频包
    {
        printf("A audio packet\n");
        audio_decode(a_codec_ctx, pkt, decoded_frame, a_out_file);
    }
    printf("pts:%lld\n", pkt->pts);
    printf("dts:%lld\n", pkt->dts);
    printf("size:%d\n", pkt->size);
    printf("pos:%lld\n", pkt->pos);
    printf("duration:%llf\n", pkt->duration * av_q2d(fmt_context->streams[pkt->stream_index]->time_base));
    // 每次循环结束释放掉上一帧的数据
    av_packet_unref(pkt); printf("\n");
  } while (1);

  // 冲刷编码器
  pkt->data = NULL; pkt->size = 0;
  video_decode(v_codec_ctx, pkt, decoded_frame, v_out_file);
  audio_decode(a_codec_ctx, pkt, decoded_frame, a_out_file);

  // 使用alloc必须进行free
  if (pkt){av_packet_free(&pkt);}

  // 清理内存
  fclose(v_out_file);
  fclose(a_out_file);
  avcodec_free_context(&v_codec_ctx);
  avcodec_free_context(&a_codec_ctx);
  av_frame_free(&decoded_frame);
  av_packet_free(&pkt);
}

void demux( const char* filepath )
{
    // AVFormatContext是描述一个媒体文件或媒体流的构成和基本信息的结构体
    AVFormatContext* fmt_context = NULL;
    int video_index = -1; // 存储视频索引
    int audio_index = -1; // 存储音频索引
    // 打开文件，主要是探测协议类型，如果是网络文件则创建网络链接，使用open必须使用close来关闭
    int ret = avformat_open_input(&fmt_context, filepath, NULL, NULL);
    if (ret < 0) { char buf[1024] = { 0 }; av_strerror(ret, buf, sizeof(buf)); printf("open %s failed: %s\n", filepath, buf); return; }
    ret = avformat_find_stream_info(fmt_context, NULL);
    if (ret < 0) { char buf[1024] = { 0 }; av_strerror(ret, buf, sizeof(buf)); printf("avformat_find_stream_info %s failed: %s\n", filepath, buf); return; }
    // dump媒体文件信息
    av_dump_format(fmt_context, 0, filepath, 0);
    // 打印context已经得到的信息
    {
        printf("media->url: %s\n", fmt_context->url);
        printf("media->bit_rate: %lld\n", fmt_context->bit_rate);
        printf("media->nb_streams: %d\n", fmt_context->nb_streams);
        // 时间计算 总秒数 * AV_TIME_BASE = duration
        int total_seconds = (fmt_context->duration) / AV_TIME_BASE;
        int hours = total_seconds / 3600; int minutes = total_seconds % 3600 / 60; int seconds = total_seconds % 3600 % 60;
        printf("media->duration: %d-%d-%d\n", hours, minutes, seconds); printf("\n");
    }
    // 使用遍历来找出媒体流
    for (auto i = 0; i < fmt_context->nb_streams; i++)
    {
        AVStream* is = fmt_context->streams[i]; // 音频流、视频流、字幕流
        if (AVMEDIA_TYPE_AUDIO == is->codecpar->codec_type) // 音频流
        {
            audio_index = i;
            printf("stream index:%d\n", is->index); // 流唯一索引
            printf("audio sample_rate:%d Hz\n", is->codecpar->sample_rate); // 音频采样率
            switch (is->codecpar->format){ // 音频采样格式
            case AV_SAMPLE_FMT_FLTP: printf("sampleformat:AV_SAMPLE_FMT_FLTP\n"); break;
            case AV_SAMPLE_FMT_S16P: printf("sampleformat:AV_SAMPLE_FMT_S16P\n"); break;
            default:break;}
            printf("audio channels: %d\n", is->codecpar->channels); // 音频信道数
            switch (is->codecpar->codec_id){ // 音频编码格式
            case AV_CODEC_ID_AAC:printf("audio codec:AAC\n"); break;
            case AV_CODEC_ID_MP3:printf("audio codec:MP3\n"); break;
            default:printf("audio codec_id:%d\n", is->codecpar->codec_id);break;}
            if (is->duration != AV_NOPTS_VALUE) // flv格式这里读不出时长
            {
                int duration_audio_seconds = is->duration * av_q2d(is->time_base); // 音频时长
                printf("audio duration: %02d:%02d:%02d\n", duration_audio_seconds / 3600, (duration_audio_seconds % 3600) / 60, (duration_audio_seconds % 60));
            }
            else { printf("duration unknown\n"); };
        }
        else if (AVMEDIA_TYPE_VIDEO == is->codecpar->codec_type) // 视频流
        {
            video_index = i;
            printf("stream index:%d\n", is->index); // 流唯一索引
            printf("video fps: %llf / s\n", av_q2d(is->avg_frame_rate)); // 视频帧率
            switch (is->codecpar->codec_id) { // 视频编码格式
            case AV_CODEC_ID_MPEG4: printf("video codec:MPEG4\n"); break;
            case AV_CODEC_ID_H264: printf("video codec:H264\n"); break;
            default:printf("video codec_id:%d\n", is->codecpar->codec_id);break;}
            printf("video width:%d px height:%d px \n", is->codecpar->width, is->codecpar->height); // 视频帧宽度和帧高度
            if (is->duration != AV_NOPTS_VALUE) // flv格式这里读不出时长
            {
                int duration_video_seconds = is->duration * av_q2d(is->time_base); // 视频时长
                printf("video duration: %02d:%02d:%02d\n", duration_video_seconds / 3600, (duration_video_seconds % 3600) / 60, (duration_video_seconds % 60));
            }
            else { printf("duration unknown\n"); };
        }
    }
    printf("\n");
    // 开始解码
    start_av_decode(fmt_context, video_index, audio_index);
    // 使用open必须使用close来关闭
    if (fmt_context){avformat_close_input(&fmt_context);}
}

int main()
{
    cout << "Hello World!" << endl;
    demux("sound_in_sync_test.mp4");
    return 0;
}

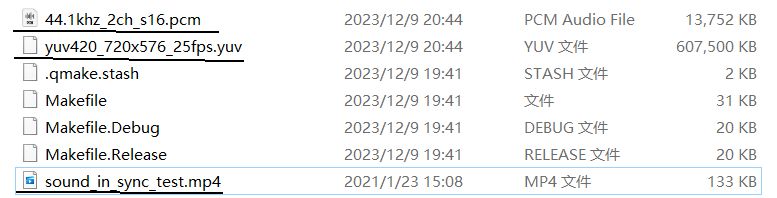

效果

01

功能二(工程化)

音频重采样类

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
AVFrame *AllocFltpPcmFrame(int channels, int sample_per_channel);
void FreePCMFrame(AVFrame *frame);

AVFrame* AllocS16PcmFrame(int channels, int sample_per_channel);

class AudioResample
{
public:
    AudioResample();
    ~AudioResample();
    int InitFromS16ToFLTP(int in_channels, int in_sample_rate, int out_channels, int out_sample_rate);
    int InitFromFLTPToS16(int in_channels, int in_sample_rate, int out_channels, int out_sample_rate);
    int ResampleFromS16ToFLTP(uint8_t* in_data, AVFrame *out_frame);
    int ResampleFromFLTPToS16(AVFrame* in_frame, AVFrame* out_frame);
    void DeInit();
private:
    int in_channels_;
    int in_sample_rate_;
    int out_channels_;
    int out_sample_rate_;
    SwrContext* ctx_ = NULL;
};
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
148
149
150
151
152
153
154
155
156
157
158
159
160
161
162
163
164
165
166
167
168
169
170
171
172
173
174
175
176
177
178
179
#include "audioresample.h"

AudioResample::AudioResample()
{

}

AudioResample::~AudioResample()
{
    if(ctx_)
        DeInit();
}

int AudioResample::InitFromS16ToFLTP(int in_channels, int in_sample_rate, int out_channels, int out_sample_rate)
{
    in_channels_ = in_channels;
    in_sample_rate_ = in_sample_rate;
    out_channels_ = out_channels;
    out_sample_rate_ = out_sample_rate;

    ctx_ = swr_alloc_set_opts(ctx_,
                                av_get_default_channel_layout(out_channels_),
                                AV_SAMPLE_FMT_FLTP,
                                out_sample_rate_,
                                av_get_default_channel_layout(in_channels_),
                                AV_SAMPLE_FMT_S16,
                                in_sample_rate_,
                                0,
                                NULL);
    if(!ctx_){
        printf("swr_alloc_set_opts failed\n");
        return -1;
    }
    int ret = swr_init(ctx_);
    if(ret < 0)
    {
        char errbuf[1024] = {0};
        av_strerror(ret, errbuf, sizeof(errbuf) - 1);
        printf("swr_init failed:%s\n", errbuf);
        return NULL;
    }
    return 0;
}

int AudioResample::InitFromFLTPToS16(int in_channels, int in_sample_rate, int out_channels, int out_sample_rate)
{
    in_channels_ = in_channels;
    in_sample_rate_ = in_sample_rate;
    out_channels_ = out_channels;
    out_sample_rate_ = out_sample_rate;

    ctx_ = swr_alloc_set_opts(ctx_,
        av_get_default_channel_layout(out_channels_),
        AV_SAMPLE_FMT_S16,
        out_sample_rate_,
        av_get_default_channel_layout(in_channels_),
        AV_SAMPLE_FMT_FLTP,
        in_sample_rate_,
        0,
        NULL);
    if (!ctx_) {
        printf("swr_alloc_set_opts failed\n");
        return -1;
    }
    int ret = swr_init(ctx_);
    if (ret < 0)
    {
        char errbuf[1024] = { 0 };
        av_strerror(ret, errbuf, sizeof(errbuf) - 1);
        printf("swr_init failed:%s\n", errbuf);
        return NULL;
    }
    return 0;
}

int AudioResample::ResampleFromFLTPToS16(AVFrame* in_frame, AVFrame* out_frame)
{
    const uint8_t* indata[AV_NUM_DATA_POINTERS] = {0};
    for (int i = 0; i < AV_NUM_DATA_POINTERS; i++)
    {
        indata[i] = in_frame->data[i];
    }
    int len = swr_convert(ctx_,
        out_frame->data,
        out_frame->nb_samples,
        indata,
        out_frame->nb_samples); // 简化处理，因为采样率没变
    if (len <= 0)
    {
        return -1;
    }
    return len;
}


int AudioResample::ResampleFromS16ToFLTP(uint8_t *in_data, AVFrame *out_frame)
{
    if (!in_data)
    {
        return -1;
    }
    const uint8_t *indata[AV_NUM_DATA_POINTERS] = {0};
    indata[0] = in_data;
    int len = swr_convert(ctx_,
                          out_frame->data,
                          out_frame->nb_samples,
                          indata,
                          out_frame->nb_samples); // 简化处理，因为采样率没变
    if(len <= 0)
    {
        return -1;
    }
    return len;
}

void AudioResample::DeInit()
{
    if(ctx_){
        swr_free(&ctx_);
    }
}

AVFrame *AllocFltpPcmFrame(int channels, int sample_per_channel)
{
    AVFrame* pcm = NULL;
    pcm = av_frame_alloc();
    if (!pcm)
    {
        return NULL;
    }
    pcm->format = AV_SAMPLE_FMT_FLTP;
    pcm->channels = channels;
    pcm->channel_layout = av_get_default_channel_layout(channels);
    pcm->nb_samples = sample_per_channel;

    int ret = av_frame_get_buffer(pcm, 0);
    if(ret != 0)
    {
        char errbuf[1024] = {0};
        av_strerror(ret, errbuf, sizeof(errbuf) - 1);
        printf("av_frame_get_buffer failed:%s\n", errbuf);
        av_frame_free(&pcm);
        return NULL;
    }
    return pcm;
}

AVFrame* AllocS16PcmFrame(int channels, int sample_per_channel)
{
    AVFrame* pcm = NULL;
    pcm = av_frame_alloc();
    if (!pcm)
    {
        return NULL;
    }
    pcm->format = AV_SAMPLE_FMT_S16;
    pcm->channels = channels;
    pcm->channel_layout = av_get_default_channel_layout(channels);
    pcm->nb_samples = sample_per_channel;

    int ret = av_frame_get_buffer(pcm, 0);
    if (ret != 0)
    {
        char errbuf[1024] = { 0 };
        av_strerror(ret, errbuf, sizeof(errbuf) - 1);
        printf("av_frame_get_buffer failed:%s\n", errbuf);
        av_frame_free(&pcm);
        return NULL;
    }
    return pcm;
}

void FreePCMFrame(AVFrame *frame)
{
    if(frame)
    {
        av_frame_free(&frame);
    }
}

音频编码类

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
class AudioEncoder
{
public:
    AudioEncoder();
    ~AudioEncoder();
    int InitAAC(int channels, int sample_rate, int bit_rate);
    // int InitMP3(/*int channels, int sample_rate, int bit_rate*/);
    void DeInit();
    // AVPacket *Encode(AVFrame *frame, int stream_index, int64_t pts, int64_t time_base);
    int Encode(AVFrame *frame, int stream_index, int64_t pts, int64_t time_base, std::vector<AVPacket*> &packets);
    int GetFrameSize(); // 获取一帧数据 每个通道需要多少个采样点
    int GetSampleFormat(); // 编码器需要的采样格式
    AVCodecContext *GetCodecContext();
    int GetChannels();
    int GetSampleRate();
private:
    int channels_ = 2;
    int sample_rate_ = 44100;
    int bit_rate_ = 128*1024;
    int64_t pts_ = 0;
    AVCodecContext * codec_ctx_ = NULL;
};
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
148
149
150
151
152
153
154
155
156
157
158
159
160
161
162
163
164
165
166
167
168
#include "audioencoder.h"

AudioEncoder::AudioEncoder()
{

}

AudioEncoder::~AudioEncoder()
{
    if(codec_ctx_){
        DeInit();
    }
}

int AudioEncoder::InitAAC(int channels, int sample_rate, int bit_rate)
{
    channels_ = channels;
    sample_rate_ = sample_rate;
    bit_rate_ = bit_rate;

    AVCodec* codec = avcodec_find_encoder(AV_CODEC_ID_AAC);
    if(!codec)
    {
        printf("avcodec_find_encoder AV_CODEC_ID_AAC failed\n");
        return -1;
    }
    codec_ctx_ = avcodec_alloc_context3(codec);
    if(!codec_ctx_)
    {
        printf("avcodec_alloc_context3 AV_CODEC_ID_AAC failed\n");
        return -1;
    }
    codec_ctx_ -> flags |= AV_CODEC_FLAG_GLOBAL_HEADER;
    codec_ctx_ -> bit_rate = bit_rate_;
    codec_ctx_ -> sample_rate = sample_rate_;
    codec_ctx_ -> sample_fmt = AV_SAMPLE_FMT_FLTP;
    codec_ctx_ -> channels = channels_;
    codec_ctx_ -> channel_layout = av_get_default_channel_layout(codec_ctx_->channels);

    int ret = avcodec_open2(codec_ctx_, NULL, NULL);
    if(ret != 0)
    {
        char errbuf[1024] = {0};
        av_strerror(ret, errbuf, sizeof(errbuf) - 1);
        printf("avcodec_open2 failed:%s\n", errbuf);
        return -1;
    }
    printf("InitAAC Success! \n");
    return 0;
}

void AudioEncoder::DeInit()
{
    if(codec_ctx_)
    {
        avcodec_free_context(&codec_ctx_);
        // codec_ctx_ = NULL; // 画蛇添足
    }
}

AVPacket *AudioEncoder::Encode(AVFrame *frame, int stream_index, int64_t pts, int64_t time_base)
{
    if(!codec_ctx_)
    {
        printf("codec_ctx_ null\n");
        return NULL;
    }
    pts = av_rescale_q(pts, AVRational{1, (int)time_base}, codec_ctx_->time_base);
    if(frame)
    {
        frame -> pts = pts;
    }
    int ret = avcodec_send_frame(codec_ctx_, frame);
    if(ret != 0)
    {
        char errbuf[1024] = {0};
        av_strerror(ret, errbuf, sizeof(errbuf) - 1);
        printf("avcodec_send_frame failed:%s\n", errbuf);
        return NULL;
    }
    AVPacket *packet = av_packet_alloc();
    // 这里如果要严谨，需要多次receive
    ret = avcodec_receive_packet(codec_ctx_, packet);
    if(ret != 0)
    {
        char errbuf[1024] = {0};
        av_strerror(ret, errbuf, sizeof(errbuf) - 1);
        printf("avcodec_receive_packet failed:%s\n", errbuf);
        av_packet_free(&packet);
        return NULL;
    }
    packet->stream_index = stream_index;
    return packet;
}

int AudioEncoder::Encode(AVFrame *frame, int stream_index, int64_t pts, int64_t time_base, std::vector<AVPacket *> &packets)
{
    if(!codec_ctx_)
    {
        printf("codec_ctx_ null\n");
        return -1;
    }
    pts = av_rescale_q(pts, AVRational{1, (int)time_base}, codec_ctx_->time_base);
    if(frame)
    {
        frame -> pts = pts;
    }
    int ret = avcodec_send_frame(codec_ctx_, frame);
    if(ret != 0)
    {
        char errbuf[1024] = {0};
        av_strerror(ret, errbuf, sizeof(errbuf) - 1);
        printf("avcodec_send_frame failed:%s\n", errbuf);
        return -1;
    }
    while(1){
        AVPacket *packet = av_packet_alloc();
        ret = avcodec_receive_packet(codec_ctx_, packet);
        packet -> stream_index = stream_index;
        if(ret == AVERROR(EAGAIN) || ret == AVERROR_EOF){
            ret = 0;
            av_packet_free(&packet);
            break;
        }
        else if(ret < 0){
            char errbuf[1024] = {0};
            av_strerror(ret, errbuf, sizeof(errbuf) - 1);
            printf("avcodec_receive_packet failed:%s\n", errbuf);
            av_packet_free(&packet);
            ret = -1;
        }
        packets.push_back(packet);
    }
    return ret;
}

int AudioEncoder::GetFrameSize()
{
    if(codec_ctx_)
        return codec_ctx_ -> frame_size;
    return 0;
}

int AudioEncoder::GetSampleFormat()
{
    if(codec_ctx_)
        return codec_ctx_ -> sample_fmt;
    return -1; // AV_SAMPLE_FMT_NONE
}

AVCodecContext *AudioEncoder::GetCodecContext()
{
    return codec_ctx_;
}

int AudioEncoder::GetChannels()
{
    if(codec_ctx_)
        return codec_ctx_->channels;
    return -1;
}

int AudioEncoder::GetSampleRate()
{
    if(codec_ctx_)
        return codec_ctx_->sample_rate;
    return -1;
}

视频编码类

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
class VideoEncoder
{
public:
    VideoEncoder();
    ~VideoEncoder();
    int InitH264(int width, int height, int fps, int bit_rate);
    // AVPacket *Encode(uint8_t* yuv_data, int yuv_size, int stream_index, int64_t pts, int64_t time_base);
    int Encode(uint8_t* yuv_data, int yuv_size, int stream_index, int64_t pts, int64_t time_base, std::vector<AVPacket*> &packets);
    void DeInit();
    AVCodecContext *GetCodecContext();
private:
    int width_ = 0;
    int height_ = 0;
    int fps_ = 0;
    int bit_rate_ = 500*1024;
    int64_t pts_ = 0;
    AVCodecContext * codec_ctx_ = NULL;
    AVFrame* frame_ = NULL;
    AVDictionary* dict_ = NULL;
};
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
148
149
150
151
152
153
154
155
156
157
158
159
160
161
162
163
164
165
166
167
168
169
170
171
172
173
174
175
176
177
178
179
180
181
182
183
184
185
186
187
#include "videoencoder.h"

VideoEncoder::VideoEncoder()
{

}

VideoEncoder::~VideoEncoder()
{
    if(codec_ctx_)
    {
        DeInit();
    }
}

int VideoEncoder::InitH264(int width, int height, int fps, int bit_rate)
{
    width_ = width;
    height_ = height;
    fps_ = fps;
    bit_rate_ = bit_rate;

    AVCodec* codec = avcodec_find_encoder(AV_CODEC_ID_H264);
    if(!codec)
    {
        printf("avcodec_find_encoder AV_CODEC_ID_H264 failed\n");
        return -1;
    }
    codec_ctx_ = avcodec_alloc_context3(codec);
    if(!codec_ctx_)
    {
        printf("avcodec_alloc_context3 AV_CODEC_ID_H264 failed\n");
        return -1;
    }
    codec_ctx_ -> flags |= AV_CODEC_FLAG_GLOBAL_HEADER;
    codec_ctx_ -> bit_rate = bit_rate_;
    codec_ctx_ -> width = width_;
    codec_ctx_ -> height = height_;
    codec_ctx_ -> framerate = {fps_ , 1};
    codec_ctx_ -> time_base = {1, 1000000}; // 单位是微妙
    codec_ctx_ -> gop_size = fps_;
    codec_ctx_ -> max_b_frames = 0;
    codec_ctx_ -> pix_fmt = AV_PIX_FMT_YUV420P;
    av_dict_set(&dict_, "tune", "zerolatency", 0);

    int ret = avcodec_open2(codec_ctx_, NULL, &dict_);
    if(ret != 0)
    {
        char errbuf[1024] = {0};
        av_strerror(ret, errbuf, sizeof(errbuf) - 1);
        printf("avcodec_open2 failed:%s\n", errbuf);
        return -1;
    }
    frame_ = av_frame_alloc();
    if(!frame_)
    {
        printf("av_frame_alloc failed\n");
        return -1;
    }
    frame_ -> width = width_;
    frame_ -> height = height_;
    frame_ -> format = codec_ctx_ -> pix_fmt;

    printf("InitH264 Success! \n");
    return 0;
}

AVPacket *VideoEncoder::Encode(uint8_t *yuv_data, int yuv_size, int stream_index, int64_t pts, int64_t time_base)
{
    if(!codec_ctx_)
    {
        printf("codec_ctx_ null\n");
        return NULL;
    }
    int ret = 0;
    pts = av_rescale_q(pts, AVRational{1, (int)time_base}, codec_ctx_->time_base);
    frame_ -> pts = pts;
    if(yuv_data)
    {
        int ret_size = av_image_fill_arrays(frame_->data,frame_->linesize,
                                            yuv_data, (AVPixelFormat)frame_->format,
                             frame_->width, frame_->height, 1);
        if(ret_size != yuv_size){
            printf("ret_size: %d != yuv_size: %d\n", ret_size, yuv_size);
            return NULL;
        }
        ret = avcodec_send_frame(codec_ctx_, frame_);
    }
    else{ // yuv_data为空时，执行flush机制
        ret = avcodec_send_frame(codec_ctx_, NULL);
    }
    if(ret != 0)
    {
        char errbuf[1024] = {0};
        av_strerror(ret, errbuf, sizeof(errbuf) - 1);
        printf("avcodec_send_frame failed:%s\n", errbuf);
        return NULL;
    }
    AVPacket *packet = av_packet_alloc();
    // 这里如果要严谨，需要多次receive
    ret = avcodec_receive_packet(codec_ctx_, packet);
    if(ret != 0)
    {
        char errbuf[1024] = {0};
        av_strerror(ret, errbuf, sizeof(errbuf) - 1);
        printf("avcodec_receive_packet failed:%s\n", errbuf);
        av_packet_free(&packet);
        return NULL;
    }
    packet->stream_index = stream_index;
    return packet;
}

int VideoEncoder::Encode(uint8_t *yuv_data, int yuv_size, int stream_index, int64_t pts, int64_t time_base, std::vector<AVPacket *> &packets)
{
    if(!codec_ctx_)
    {
        printf("codec_ctx_ null\n");
        return -1;
    }
    int ret = 0;
    pts = av_rescale_q(pts, AVRational{1, (int)time_base}, codec_ctx_->time_base);
    frame_ -> pts = pts;
    if(yuv_data)
    {
        int ret_size = av_image_fill_arrays(frame_->data,frame_->linesize,
                                            yuv_data, (AVPixelFormat)frame_->format,
                                            frame_->width, frame_->height, 1);
        if(ret_size != yuv_size){
            printf("ret_size: %d != yuv_size: %d\n", ret_size, yuv_size);
            return -1;
        }
        ret = avcodec_send_frame(codec_ctx_, frame_);
    }
    else{ // yuv_data为空时，执行flush机制
        ret = avcodec_send_frame(codec_ctx_, NULL);
    }
    if(ret != 0)
    {
        char errbuf[1024] = {0};
        av_strerror(ret, errbuf, sizeof(errbuf) - 1);
        printf("avcodec_send_frame failed:%s\n", errbuf);
        return -1;
    }
    while(1){
        AVPacket *packet = av_packet_alloc();
        ret = avcodec_receive_packet(codec_ctx_, packet);
        packet -> stream_index = stream_index;
        if(ret == AVERROR(EAGAIN) || ret == AVERROR_EOF){
            ret = 0;
            av_packet_free(&packet);
            break;
        }
        else if(ret < 0){
            char errbuf[1024] = {0};
            av_strerror(ret, errbuf, sizeof(errbuf) - 1);
            printf("avcodec_receive_packet failed:%s\n", errbuf);
            av_packet_free(&packet);
            ret = -1;
            break;
        }
        packets.push_back(packet);
    }
    return ret;
}

void VideoEncoder::DeInit()
{
    if(codec_ctx_)
    {
        avcodec_free_context(&codec_ctx_);
    }
    if(frame_)
    {
        av_frame_free(&frame_);
    }
    if(dict_)
    {
        av_dict_free(&dict_);
    }
}

AVCodecContext *VideoEncoder::GetCodecContext()
{
    return codec_ctx_;
}

封装类

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
class Muxer
{
public:
    Muxer();
    ~Muxer();
    // 输出文件 返回 < 0值异常
    // 初始化
    int Init(const char *url);
    // 资源释放
    void DeInit();
    // 创建流
    int AddStream(AVCodecContext *codec_ctx);
    // 写流
    int SendHeader();
    int SendPacket(AVPacket* packet);
    int SendTrailer();

    // avio open
    int Open();

    int GetAudioStreamIndex();
    int GetVideoStreamIndex();
private:
    AVFormatContext *fmt_ctx_ = NULL;
    std::string url_ = "";

    // 编码器上下文
    AVCodecContext *aud_codec_ctx_ = NULL;
    AVStream *aud_stream_ = NULL;
    AVCodecContext *vid_codec_ctx_ = NULL;
    AVStream *vid_stream_ = NULL;

    int audio_index_ = -1;
    int video_index_ = -1;
};
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
148
149
150
151
152
153
154
155
156
157
158
159
160
161
162
163
164
165
166
167
168
169
170
171
172
173
174
175
176
177
#include "muxer.h"


Muxer::Muxer()
{

}

Muxer::~Muxer()
{

}

int Muxer::Init(const char *url)
{
    int ret = avformat_alloc_output_context2(&fmt_ctx_, NULL, NULL, url);
    if(ret < 0)
    {
        char errbuf[1024] = {0};
        av_strerror(ret, errbuf, sizeof(errbuf) - 1);
        printf("avformat_alloc_output_context2 failed:%s\n", errbuf);
        return -1;
    }
    url_ = url;
    return 0;
}

void Muxer::DeInit()
{
    if(fmt_ctx_)
    {
        avformat_close_input(&fmt_ctx_);
    }
    url_ = "";
    aud_codec_ctx_ = NULL;
    aud_stream_ = NULL;
    vid_codec_ctx_ = NULL;
    vid_stream_ = NULL;
    audio_index_ = -1;
    video_index_ = -1;
}

int Muxer::AddStream(AVCodecContext *codec_ctx)
{
    if(!fmt_ctx_){
        printf("fmt ctx is NULL\n");
        return -1;
    }
    if(!codec_ctx)
    {
        printf("codec ctx is NULL\n");
        return -1;
    }
    AVStream *st = avformat_new_stream(fmt_ctx_, NULL);
    if(!st)
    {
        printf("avformat_new_stream failed!\n");
        return -1;
    }
    // st->codecpar->codec_tag = 0;
    // 选择从编码器上下文复制
    avcodec_parameters_from_context(st->codecpar, codec_ctx);
    av_dump_format(fmt_ctx_, 0, url_.c_str(), 1);

    // 判断当前是音频还是视频流
    if(codec_ctx->codec_type == AVMEDIA_TYPE_AUDIO){
        aud_codec_ctx_ = codec_ctx;
        aud_stream_ = st;
        audio_index_ = st->index;
    }  else  if(codec_ctx->codec_type == AVMEDIA_TYPE_VIDEO){
        vid_codec_ctx_ = codec_ctx;
        vid_stream_ = st;
        video_index_ = st->index;
    }
    return 0;
}

int Muxer::SendHeader()
{
    if(!fmt_ctx_){
        printf("fmt ctx is NULL\n");
        return -1;
    }
    int ret = avformat_write_header(fmt_ctx_, NULL);
    if(ret != 0)
    {
        char errbuf[1024] = {0};
        av_strerror(ret, errbuf, sizeof(errbuf) - 1);
        printf("avformat_write_header failed:%s\n", errbuf);
        return -1;
    }
    return 0;
}

int Muxer::SendPacket(AVPacket *packet)
{
    int stream_index = packet->stream_index;
    printf("index:%d, pts:%lld\n", stream_index, packet -> pts);
    if(!packet || packet->size <= 0 || !packet->data)
    {
        printf("packet is NULL \n");
        if(packet)
            av_packet_free(&packet);
        return -1;
    }
    AVRational src_time_base; // 编码后的包
    AVRational dst_time_base; // MP4文件对应的time_base
    if(vid_stream_ && vid_codec_ctx_ && stream_index == video_index_)
    {
        src_time_base = vid_codec_ctx_->time_base;
        dst_time_base = vid_stream_->time_base;
    }
    else if(aud_stream_ && aud_codec_ctx_ && stream_index == audio_index_)
    {
        src_time_base = aud_codec_ctx_->time_base;
        dst_time_base = aud_stream_->time_base;
    }
    // 时间基转换
    packet->pts = av_rescale_q(packet->pts, src_time_base, dst_time_base);
    packet->dts = av_rescale_q(packet->dts, src_time_base, dst_time_base);
    packet->duration = av_rescale_q(packet->duration, src_time_base, dst_time_base);

    int ret = 0;
    ret = av_interleaved_write_frame(fmt_ctx_, packet); // 不是立即写入，有缓存
    // ret = av_write_frame(fmt_ctx_, packet); // 无缓存
    av_packet_free(&packet); // ????
    if(ret == 0)
        return 0;
    else{
        char errbuf[1024] = {0};
        av_strerror(ret, errbuf, sizeof(errbuf) - 1);
        printf("avformat_alloc_output_context2 failed:%s\n", errbuf);
        return -1;
    }
}

int Muxer::SendTrailer()
{
    if(!fmt_ctx_){
        printf("fmt ctx is NULL\n");
        return -1;
    }
    int ret = av_write_trailer(fmt_ctx_);
    if(ret != 0)
    {
        char errbuf[1024] = {0};
        av_strerror(ret, errbuf, sizeof(errbuf) - 1);
        printf("av_write_trailer failed:%s\n", errbuf);
        return -1;
    }
    return 0;
}

int Muxer::Open()
{
    int ret = avio_open(&fmt_ctx_->pb, url_.c_str(), AVIO_FLAG_WRITE);
    if(ret < 0)
    {
        char errbuf[1024] = {0};
        av_strerror(ret, errbuf, sizeof(errbuf) - 1);
        printf("avio_open %s failed:%s\n", url_.c_str(), errbuf);
        return -1;
    }

    return ret;
}

int Muxer::GetAudioStreamIndex()
{
    return audio_index_;
}

int Muxer::GetVideoStreamIndex()
{
    return video_index_;
}

Main Test

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
148
149
150
151
152
153
154
155
156
157
158
159
160
161
162
163
164
165
166
167
168
169
170
171
172
173
174
175
176
177
178
179
180
181
182
183
184
185
186
187
188
189
190
191
192
193
194
195
196
197
198
199
200
201
202
203
204
205
206
207
208
209
210
211
212
213
214
215
216
217
218
219
220
221
222
223
224
225
226
227
228
229
230
231
232
233
234
235
236
237
238
239
240
241
242
243
244
245
246
247
248
249
250
251
252
253
254
255
256
257
258
259
260
261
262
263
264
265
266
267
268
#include <iostream>
#include "audioencoder.h"
#include "videoencoder.h"
#include "audioresample.h"
#include "muxer.h"
#include "demux_main.h"
using namespace std;

#define YUV_WIDTH 720
#define YUV_HEIGHT 576
#define YUV_FPS 25

#define VIDEO_BIT_RATE 500 * 1024


#define PCM_SAMPLE_FORMAT AV_SAMPLE_FMT_S16
#define PCM_SAMPLE_RATE 44100
#define PCM_CHANNELS 2

#define AUDIO_BIT_RATE 128*1024

#define AUDIO_TIME_BASE 1000000
#define VIDEO_TIME_BASE 1000000

// ffmpeg -i sound_in_sync_test.mp4 -pix_fmt yuv420p 720x576_yuv420p.yuv
// ffmpeg -i sound_in_sync_test.mp4 -vn -ar 44100 -ac 2 -f s16le 44100_2_s16le.pcm
// 执行文件 yuv文件 pcm文件 输出mp4文件
int main(int argc, char **argv)
{
    // demux_main("sound_in_sync_test.mp4");
    // return 0;

    // std::cout << "hello world" << std::endl;
    if(argc != 4)
    {
        printf("usage -> exe in.yuv in.pcm out.mp4");
        return -1;
    }
    // 1. 打开yuv pcm文件
    char *in_yuv_name  = argv[1];
    char *in_pcm_name  = argv[2];
    char *out_mp4_name  = argv[3];
    FILE *in_yuv_fd = NULL;
    FILE *in_pcm_fd = NULL;
    in_yuv_fd = fopen(in_yuv_name, "rb");
    if( !in_yuv_fd )
    {
        printf("Failed to open %s file\n", in_yuv_name);
        return -1;
    }
    in_pcm_fd = fopen(in_pcm_name, "rb");
    if( !in_pcm_fd )
    {
        printf("Failed to open %s file\n", in_pcm_name);
        return -1;
    }

    int ret = 0;
    // 2. 初始化编码器，包括视频、音频编码器，分配yuv、pcm的帧buffer
    // 初始化video
    int yuv_width = YUV_WIDTH;
    int yuv_height = YUV_HEIGHT;
    int yuv_fps = YUV_FPS;
    int video_bit_rate = VIDEO_BIT_RATE;

    VideoEncoder video_encoder;
    ret = video_encoder.InitH264(yuv_width, yuv_height, yuv_fps, video_bit_rate);
    if(ret < 0)
    {
        printf("video_encoder.InitH264 err\n");
        return -1;
    }
    // 分配YUV Buffer
    int y_frame_size = yuv_width * yuv_height;
    int u_frame_size = yuv_width * yuv_height / 4;
    int v_frame_size = yuv_width * yuv_height / 4;
    int yuv_frame_size = y_frame_size + u_frame_size + v_frame_size;
    uint8_t *yuv_frame_buf = (uint8_t*)malloc(yuv_frame_size);
    if( !yuv_frame_buf )
    {
        printf("malloc yuv_frame_buf err\n");
        return -1;
    }
    // 初始化audio
    int pcm_channels = PCM_CHANNELS;
    int pcm_sample_rate = PCM_SAMPLE_RATE;
    int pcm_sample_format = PCM_SAMPLE_FORMAT;
    int audio_bit_rate = AUDIO_BIT_RATE;
    AudioEncoder audio_encoder;
    audio_encoder.InitAAC(pcm_channels, pcm_sample_rate, audio_bit_rate);
    if(ret < 0)
    {
        printf("audio_encoder.InitAAC err\n");
        return -1;
    }
    // pcm_frame_size = 单个采样点占用的字节 * 通道数 * 每个通道有多少个采样点
    int pcm_frame_size = av_get_bytes_per_sample((AVSampleFormat)pcm_sample_format)
                         * pcm_channels
                         * audio_encoder.GetFrameSize();
    if( pcm_frame_size <= 0 )
    {
        printf("pcm_frame_size <= 0\n");
        return -1;
    }
    uint8_t* pcm_frame_buf = (uint8_t*) malloc (pcm_frame_size);
    if(!pcm_frame_buf)
    {
        printf("malloc pcm_frame_buf err\n");
        return -1;
    }
    // 初始化重采样
    AudioResample audio_resample;
    ret = audio_resample.InitFromS16ToFLTP(pcm_channels, pcm_sample_rate,
                                    audio_encoder.GetChannels(),
                                     audio_encoder.GetSampleRate());
    if(ret < 0)
    {
        printf("audio_resample.InitFromS16ToFLTP err\n");
        return -1;
    }
    // 3. mp4初始化 包括新建流，open io，send header
    Muxer mp4_muxer;
    ret = mp4_muxer.Init(out_mp4_name);
    if(ret < 0)
    {
        printf("mp4_muxer.Init err\n");
        return -1;
    }
    ret = mp4_muxer.AddStream(video_encoder.GetCodecContext());
    if(ret < 0)
    {
        printf("mp4_muxer.AddStream video err\n");
        return -1;
    }
    ret = mp4_muxer.AddStream(audio_encoder.GetCodecContext());
    if(ret < 0)
    {
        printf("mp4_muxer.AddStream audio err\n");
        return -1;
    }
    ret = mp4_muxer.Open();
    if(ret < 0)
    {
        printf("mp4_muxer.Open err\n");
        return -1;
    }
    ret = mp4_muxer.SendHeader();
    if(ret < 0)
    {
        printf("mp4_muxer.SendHeader err\n");
        return -1;
    }
    // 4. 在while循环里读取yuv、pcm进行编码然后发送给MP4 muxer

    /*
        根据帧间隔去叠加时间戳，如视频帧25fps，帧间隔是40ms
        音频是44100hz，一帧1024个采样点，帧间隔23.219954…ms
    */

    double audio_pts = 0;
    double video_pts = 0;
    double audio_frame_duration = 1.0 * audio_encoder.GetFrameSize()
                                  / pcm_sample_rate
                                  * AUDIO_TIME_BASE;
    double video_frame_duration = 1.0 / yuv_fps * VIDEO_TIME_BASE;

    int audio_finish = 0; // 两者都为0时结束循环
    int video_finish = 0;

    size_t read_len = 0;
    vector<AVPacket*> packets;
    int audio_index = mp4_muxer.GetAudioStreamIndex();
    int video_index = mp4_muxer.GetVideoStreamIndex();
    while(1)
    {
        if(audio_finish && video_finish)
            break;
        printf("apts:%0.0lf vpts:%0.0lf\n", audio_pts/1000, video_pts/1000);
        if((video_finish != 1 && audio_pts > video_pts)
            || (video_finish != 1 && audio_finish == 1)) // audio和video都有数据，优先audio
        {
            read_len = fread(yuv_frame_buf, 1, yuv_frame_size, in_yuv_fd);
            if(read_len < yuv_frame_size){
                video_finish = 1;
                printf("fread yuv_frame_buf finished\n");
            }

            if(video_finish != 1)
            {
                ret = video_encoder.Encode(yuv_frame_buf,
                                              yuv_frame_size,
                                              video_index,
                                              video_pts,
                                              VIDEO_TIME_BASE, packets);
            }
            else
            {
                ret = video_encoder.Encode(NULL,
                                           0,
                                           video_index,
                                           video_pts,
                                           VIDEO_TIME_BASE, packets);
            }
            video_pts += video_frame_duration; // 叠加时间戳
            if(ret >= 0){
                for(int i = 0 ; i < packets.size() ; i++){
                    mp4_muxer.SendPacket(packets[i]);
                }
            }
            packets.clear();
        }
        else if(audio_finish != 1)
        {
            read_len = fread(pcm_frame_buf, 1, pcm_frame_size, in_pcm_fd);
            if(read_len < pcm_frame_size){
                audio_finish = 1;
                printf("fread pcm_frame_buf finished\n");
            }
            if(audio_finish != 1)
            {
                AVFrame *fltp_frame = AllocFltpPcmFrame(pcm_channels, audio_encoder.GetFrameSize());
                ret = audio_resample.ResampleFromS16ToFLTP(pcm_frame_buf, fltp_frame);
                if(ret < 0)
                {
                    printf("audio_resample.ResampleFromS16ToFLTP \n");
                }
                ret = audio_encoder.Encode(fltp_frame,
                                                audio_index,
                                                audio_pts,
                                                AUDIO_TIME_BASE,
                                            packets);
                FreePCMFrame(fltp_frame);
            }
            else
            {
                ret = audio_encoder.Encode(NULL,
                                              audio_index,
                                              audio_pts,
                                              AUDIO_TIME_BASE,
                                           packets);
            }
            audio_pts += audio_frame_duration; // 叠加时间戳
            if(ret >= 0){
                for(int i = 0 ; i < packets.size() ; i++){
                    mp4_muxer.SendPacket(packets[i]);
                }
            }
            packets.clear();
        }
    }
    // 5. 清理现场
    ret = mp4_muxer.SendTrailer();
    if(ret < 0)
    {
        printf("mp4_muxer.SendTrailer err\n");
    }
    printf("Write mp4 finished\n");
    if(yuv_frame_buf)
        free(yuv_frame_buf);
    if(pcm_frame_buf)
        free(pcm_frame_buf);
    if(in_pcm_fd)
        fclose(in_pcm_fd);
    if(in_yuv_fd)
        fclose(in_yuv_fd);

    return 0;
}
2023-12-09 该篇文章被 Cleofwine 归为分类: 音视频

上一篇：音视频开发_YUV 裁剪、镜像过滤器 下一篇：音视频开发_FFmpeg时间戳详解
© 2023-2026 Cleofwine / Email / GitHub / 浙ICP备2024136127号
🌙赠我弯弯一枚月，也赠予我晚星⭐ 本站由Hexo驱动｜使用Hexo-theme-A4主题
