高性能web框架gin

  • go语言编写的web框架，适用于web后台开发

RESTful API与API版本控制

RESTful API

  1. 一个约定或者规范
  2. 每一个url都是一个资源，所以资源的url是一个名词如/user而不是/getuser
  3. 我们要对资源做的事情，通过http method来表示，如get、put、post

安装gin框架

1
go get -u github.com/gin-gonic/gin

简单gin示例

  • main.go
    1
    2
    3
    4
    5
    6
    7
    8
    9
    10
    11
    12
    13
    14
    15
    16
    17
    package main

    import (
    	"gin/routers"

    	"github.com/gin-gonic/gin"
    )

    func main() {
    	r := gin.Default()
    	r.GET("/ping", func(ctx *gin.Context) {
    		ctx.JSON(http.StatusOK, gin.H{
    			"message": "pong",
    		})
    	})
    	r.Run()
    }

使用多版本API示例

定义业务对象

  1. course
  2. user
  3. upload
    1
    2
    3
    4
    5
    6
    7
    8
    9
    10
    11
    12
    13
    14
    15
    16
    17
    18
    19
    20
    21
    22
    23
    24
    25
    26
    27
    28
    29
    30
    31
    32
    33
    34
    35
    36
    37
    38
    39
    40
    41
    42
    43
    44
    45
    46
    47
    48
    49
    50
    51
    52
    53
    54
    55
    56
    57
    58
    59
    60
    61
    62
    63
    64
    65
    66
    67
    68
    69
    70
    71
    72
    73
    74
    75
    76
    77
    78
    79
    80
    81
    82
    83
    84
    85
    86
    87
    88
    89
    90
    91
    92
    93
    94
    95
    96
    // course.go
    package course

    import (
    	"net/http"

    	"github.com/gin-gonic/gin"
    )

    func Add(c *gin.Context) {
    	c.JSON(http.StatusOK, gin.H{
    		"method": c.Request.Method,
    		"path":   c.Request.URL.Path,
    	})
    }

    func Get(c *gin.Context) {
    	c.JSON(http.StatusOK, gin.H{
    		"method": c.Request.Method,
    		"path":   c.Request.URL.Path,
    	})
    }

    func Edit(c *gin.Context) {
    	c.JSON(http.StatusOK, gin.H{
    		"method": c.Request.Method,
    		"path":   c.Request.URL.Path,
    	})
    }

    func Delete(c *gin.Context) {
    	c.JSON(http.StatusOK, gin.H{
    		"method": c.Request.Method,
    		"path":   c.Request.URL.Path,
    	})
    }
    // user.go
    package user

    import (
    	"net/http"

    	"github.com/gin-gonic/gin"
    )

    func Add(c *gin.Context) {
    	c.JSON(http.StatusOK, gin.H{
    		"method": c.Request.Method,
    		"path":   c.Request.URL.Path,
    	})
    }

    func Get(c *gin.Context) {
    	c.JSON(http.StatusOK, gin.H{
    		"method": c.Request.Method,
    		"path":   c.Request.URL.Path,
    	})
    }
    // user_v2.go
    package user

    import (
    	"net/http"

    	"github.com/gin-gonic/gin"
    )

    func AddV2(c *gin.Context) {
    	c.JSON(http.StatusOK, gin.H{
    		"method": c.Request.Method,
    		"path":   c.Request.URL.Path,
    	})
    }

    func GetV2(c *gin.Context) {
    	c.JSON(http.StatusOK, gin.H{
    		"method": c.Request.Method,
    		"path":   c.Request.URL.Path,
    	})
    }
    // upload.go
    package upload

    import (
    	"net/http"

    	"github.com/gin-gonic/gin"
    )

    func Upload(c *gin.Context) {
    	c.JSON(http.StatusOK, gin.H{
    		"method": c.Request.Method,
    		"path":   c.Request.URL.Path,
    	})
    }

定义路由

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
// course.go
package routers

import (
	"gin/course"

	"github.com/gin-gonic/gin"
)

func initCourse(group *gin.RouterGroup) {
	v1 := group.Group("v1")
	{
		// /api/v1/course/id
		v1.GET("/course/:id", course.Get)
		v1.POST("/course", course.Add)
		v1.PUT("/course", course.Edit)
		v1.DELETE("/course", course.Delete)
	}
}
// user.go
package routers

import (
	"gin/user"

	"github.com/gin-gonic/gin"
)

func initUser(group *gin.RouterGroup) {
	v1 := group.Group("v1")
	{
		v1.GET("/user/:id", user.Get)
		v1.POST("/user", user.Add)
	}
	v2 := group.Group("v2")
	{
		v2.GET("/user/:id", user.GetV2)
		v2.POST("/user", user.AddV2)
	}
}
// upload.go
package routers

import (
	"gin/upload"

	"github.com/gin-gonic/gin"
)

func initUpload(group *gin.RouterGroup) {
	v1 := group.Group("v1")
	v1.POST("/upload", upload.Upload)
}
// routers.go
package routers

import "github.com/gin-gonic/gin"

func InitRouters(r *gin.Engine) {
	api := r.Group("/api")
	initCourse(api)
	initUser(api)
	initUpload(api)
}

启用服务

  • main.go
    1
    2
    3
    4
    5
    6
    7
    8
    9
    10
    11
    12
    13
    14
    package main

    import (
    	"gin/routers"

    	"github.com/gin-gonic/gin"
    )

    func main() {
    	r := gin.Default()
    	routers.InitRouters(r)
    	r.Run()
    }

模型绑定、参数验证及文件上传

模型绑定、参数验证

  • course.go
    1
    2
    3
    4
    5
    6
    7
    8
    9
    10
    11
    12
    13
    14
    15
    16
    17
    18
    19
    20
    21
    22
    23
    24
    25
    26
    27
    28
    29
    30
    31
    32
    33
    34
    35
    36
    37
    38
    39
    40
    41
    42
    43
    44
    45
    46
    47
    48
    49
    50
    51
    52
    53
    54
    55
    56
    package course

    import (
    	"net/http"

    	"github.com/gin-gonic/gin"
    )

    // 定义模型
    type course struct {
    	// 手动指明表单里面写的字段名，否则就是Name, binding是做一些校验的地方，这里是必填+字母
    	Name     string `form:"name" binding:"required,alphaunicode"`
    	Teacher  string `json:"teacher" binding:"required,alphaunicode"` // 手动指明json里面写的字段名，否则就是Teacher
    	Duration int    `binding:"number"`
    }

    func Add(c *gin.Context) {
    	req := &course{}
    	// 只能取到x-www-form-urlencoded的表单值，不能取到form-data和json的值
    	err := c.ShouldBind(req) // 带should的，假如没有从form表单中取到值，就返回一个错误
    	// c.Bind()
    	if err != nil {
    		c.JSON(http.StatusInternalServerError, gin.H{
    			"error": err.Error(),
    		})
    		return
    	}
    	c.JSON(http.StatusOK, req)
    }

    func Get(c *gin.Context) {
    	id := c.Param("id") // 路径上的参数即 :id的获取方式
    	c.JSON(http.StatusOK, gin.H{
    		"id": id,
    	})
    }

    func Edit(c *gin.Context) { // edit方法，即put方法和add方法参数获取方法一致
    	req := &course{}
    	err := c.Bind(req) // bind方法没有should，假如我们传入一个duration是字符串，那么会直接返回400错误，并不会走到下面的500错误返回的代码里面
    	if err != nil {
    		c.JSON(http.StatusInternalServerError, gin.H{
    			"error": err.Error(),
    		})
    		return
    	}
    	c.JSON(http.StatusOK, req)
    }

    func Delete(c *gin.Context) { // delete方法获取参数需要用到query string
    	id := c.Query("id")
    	c.JSON(http.StatusOK, gin.H{
    		"id": id,
    	})
    }

  • user.go
    1
    2
    3
    4
    5
    6
    7
    8
    9
    10
    11
    12
    13
    14
    15
    16
    17
    18
    19
    20
    21
    22
    23
    24
    25
    26
    27
    28
    29
    30
    31
    32
    33
    34
    35
    36
    37
    package user

    import (
    	"net/http"

    	"github.com/gin-gonic/gin"
    )

    type user struct {
    	Name  string `json:"name" binding:"required,alphaunicode"`
    	Age   int    `json:"age" binding:"omitempty,number"` // 忽略为空的情况的格式校验
    	Phone string `json:"phone" binding:"omitempty,e164"`
    	Email string `json:"email" binding:"omitempty,email"`
    }

    // http://localhost:8080/api/v1/user
    // {"name":"lin","age":18,"Phone":"+8613683200000","Email":"123@xx.cn"}
    func Add(c *gin.Context) {
    	req := &user{}
    	err := c.ShouldBindJSON(req)
    	if err != nil {
    		c.JSON(http.StatusInternalServerError, gin.H{
    			"error": err.Error(),
    		})
    		return
    	}
    	c.JSON(http.StatusOK, req)
    }

    // http://localhost:8080/api/v1/user?id=10
    func Get(c *gin.Context) {
    	id := c.Query("id")
    	c.JSON(http.StatusOK, gin.H{
    		"id": id,
    	})
    }

文件上传

  • upload.go
    1
    2
    3
    4
    5
    6
    7
    8
    9
    10
    11
    12
    13
    14
    15
    16
    17
    18
    19
    20
    21
    22
    23
    24
    25
    26
    27
    28
    29
    30
    31
    32
    33
    34
    package upload

    import (
    	"net/http"

    	"github.com/gin-gonic/gin"
    )

    func Upload(c *gin.Context) {
    	// 此处file是字段名
    	file, _ := c.FormFile("file")
    	dst := "upload_files/" + file.Filename
    	c.SaveUploadedFile(file, dst)
    	c.JSON(http.StatusOK, gin.H{
    		"file": file.Filename,
    	})
    }

    func UploadMulitiple(c *gin.Context) {
    	form, _ := c.MultipartForm()
    	// 此处files是字段名
    	files := form.File["files"]
    	filesName := make([]string, len(files))
    	for i := 0; i < len(files); i++ {
    		file := files[i]
    		dst := "upload_files/" + file.Filename
    		c.SaveUploadedFile(file, dst)
    		filesName[i] = file.Filename
    	}
    	c.JSON(http.StatusOK, gin.H{
    		"files": filesName,
    	})
    }

  • 修改路由添加多文件上传
  • upload.go
    1
    2
    3
    4
    5
    6
    7
    8
    9
    10
    11
    12
    13
    14
    package routers

    import (
    	"gin/upload"

    	"github.com/gin-gonic/gin"
    )

    func initUpload(group *gin.RouterGroup) {
    	v1 := group.Group("v1")
    	v1.POST("/upload", upload.Upload)
    	v1.POST("/uploadmult", upload.UploadMulitiple)
    }

  • 修改单次api请求的最大空间限制
  • main.go
    1
    2
    3
    4
    5
    6
    7
    8
    9
    10
    11
    12
    13
    14
    15
    package main

    import (
    	"gin/routers"

    	"github.com/gin-gonic/gin"
    )

    func main() {
    	r := gin.Default()
    	r.MaxMultipartMemory = 8 << 20 // 设置单次请求的最大空间大小
    	routers.InitRouters(r)
    	r.Run()
    }

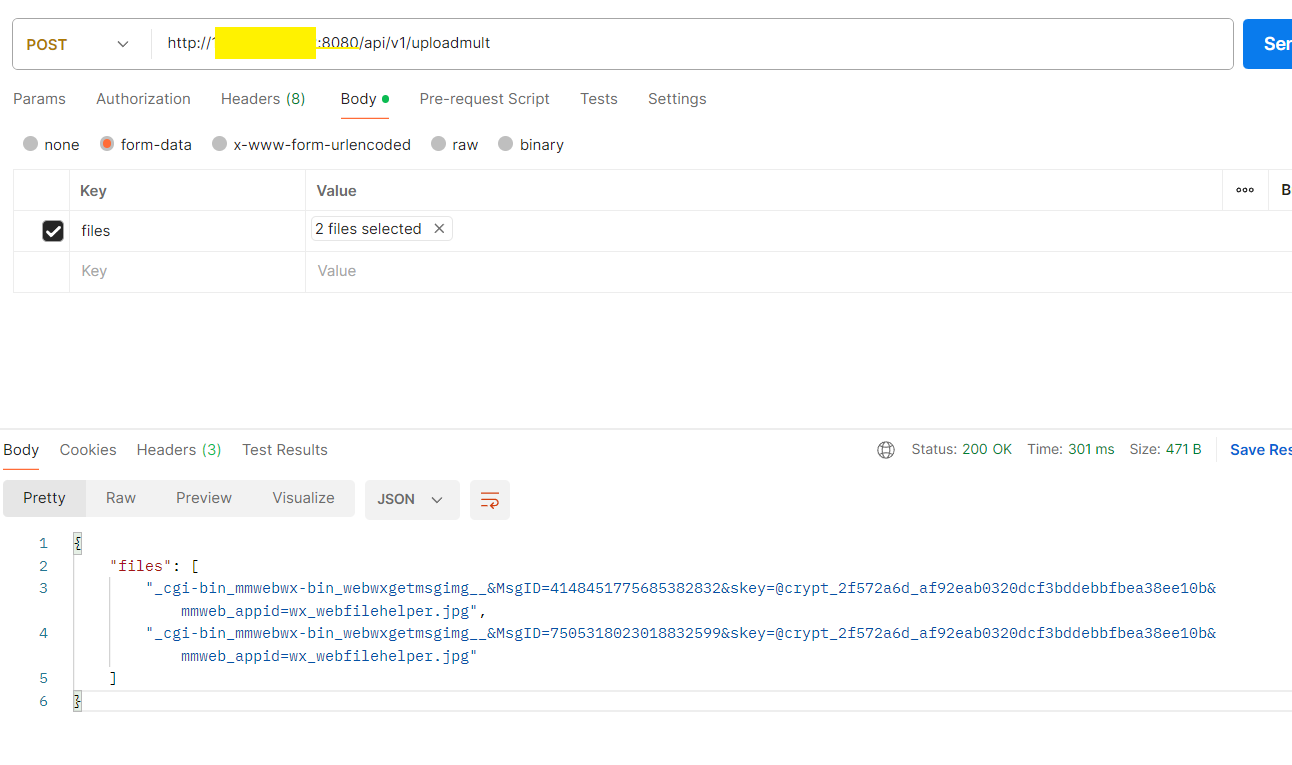

  • 文件上传只能从form-data上传
    alt text

中间件编程及jwt身份认证

  • 添加跨域处理包
    1
    go get github.com/gin-contrib/cors
  • 添加身份认证处理包
    1
    go get github.com/golang-jwt/jwt/v4

跨域处理中间件

  • cors.go
    1
    2
    3
    4
    5
    6
    7
    8
    9
    10
    11
    12
    13
    14
    15
    16
    17
    18
    19
    package middleware

    import (
    	"github.com/gin-contrib/cors"
    	"github.com/gin-gonic/gin"
    )

    func Cors() gin.HandlerFunc {
    	// 添加跨域逻辑
    	return cors.New(cors.Config{
    		AllowAllOrigins: true,
    		AllowHeaders: []string{
    			"Origin", "Content-Length", "Content-Type",
    		},
    		AllowMethods: []string{
    			"GET", "POST", "DELETE", "PUT", "HEAD", "OPTIONS",
    		},
    	})
    }

身份认证中间件

jwt插件

  • jwt.go
    1
    2
    3
    4
    5
    6
    7
    8
    9
    10
    11
    12
    13
    14
    15
    16
    17
    18
    19
    20
    21
    22
    23
    24
    25
    26
    27
    28
    29
    30
    31
    package jwtplugin

    import "github.com/golang-jwt/jwt/v4"

    var key = "abcdefg1234567" // 先这么写着，实际开发要写到配置文件中，会灵活很多

    type Data struct {
    	Name   string `json:"name"`
    	Age    int    `json:"age"`
    	Gender int    `json:"gender"`
    	jwt.RegisteredClaims
    }

    // 签名
    func Sign(data jwt.Claims) (string, error) {
    	token := jwt.NewWithClaims(jwt.SigningMethodES256, data)
    	sign, err := token.SignedString([]byte(key))
    	if err != nil {
    		return "", err
    	}
    	return sign, err
    }

    // 验签
    func Verify(sign string, data jwt.Claims) error {
    	_, err := jwt.ParseWithClaims(sign, data, func(token *jwt.Token) (interface{}, error) {
    		return []byte(key), nil
    	})
    	return err
    }

认证中间件

  • auth.go
    1
    2
    3
    4
    5
    6
    7
    8
    9
    10
    11
    12
    13
    14
    15
    16
    17
    18
    19
    20
    21
    22
    23
    24
    25
    26
    package middleware

    import (
    	jwtplugin "gin/jwt_plugin"
    	"net/http"

    	"github.com/gin-gonic/gin"
    )

    func Auth() gin.HandlerFunc {
    	return func(c *gin.Context) {
    		// 添加身份认证逻辑
    		accessToken := c.Request.Header.Get("access_token")
    		data := &jwtplugin.Data{}
    		err := jwtplugin.Verify(accessToken, data)
    		if err != nil {
    			c.JSON(http.StatusForbidden, gin.H{
    				"error": "身份认证失败",
    			})
    			c.Abort()
    		}
    		c.Set("auth_info", data) // 将认证信息设置到上下文中，随时可以使用c.Get("auth_info")取出
    		c.Next()                 // 执行下一个中间件
    	}
    }

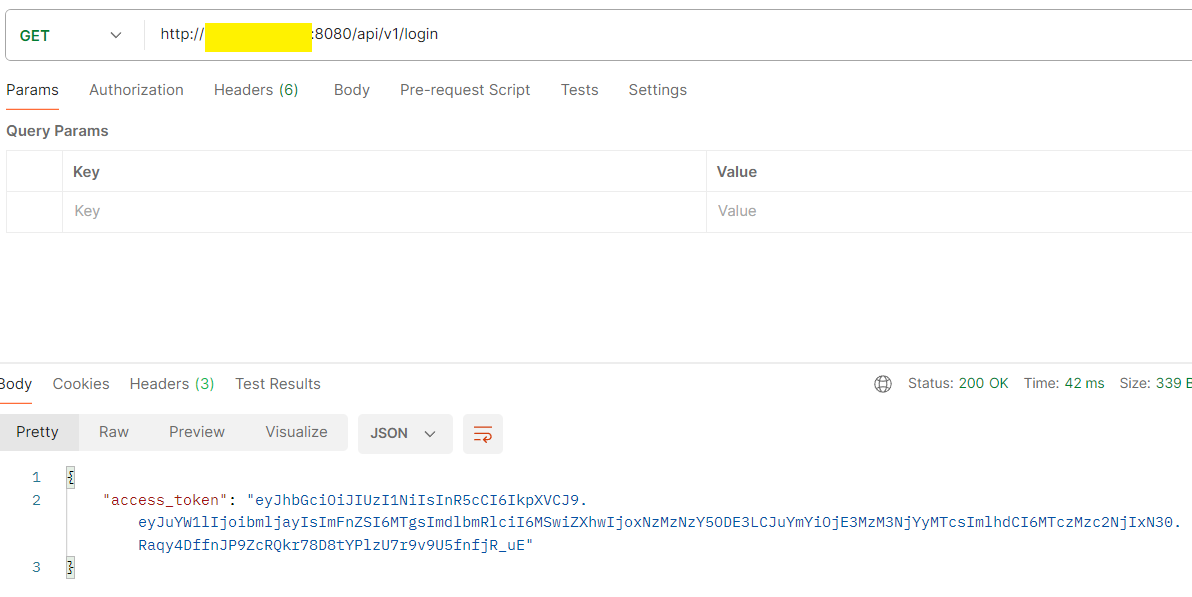

模拟登录接口

  • login.go
    1
    2
    3
    4
    5
    6
    7
    8
    9
    10
    11
    12
    13
    14
    15
    16
    17
    18
    19
    20
    21
    22
    23
    24
    25
    26
    27
    28
    29
    30
    31
    32
    33
    package login

    import (
    	jwtplugin "gin/jwt_plugin"
    	"net/http"
    	"time"

    	"github.com/gin-gonic/gin"
    	"github.com/golang-jwt/jwt/v4"
    )

    func Login(c *gin.Context) {
    	data := jwtplugin.Data{
    		Name:   "nick",
    		Age:    18,
    		Gender: 1,
    		RegisteredClaims: jwt.RegisteredClaims{
    			ExpiresAt: jwt.NewNumericDate(time.Now().Add(time.Hour)),
    			IssuedAt:  jwt.NewNumericDate(time.Now()),
    			NotBefore: jwt.NewNumericDate(time.Now()),
    		},
    	}
    	sign, err := jwtplugin.Sign(data)
    	if err != nil {
    		c.JSON(http.StatusInternalServerError, gin.H{
    			"error": err.Error(),
    		})
    		return
    	}
    	c.JSON(http.StatusOK, gin.H{
    		"access_token": sign,
    	})
    }
  • login.go
    1
    2
    3
    4
    5
    6
    7
    8
    9
    10
    11
    12
    13
    14
    15
    package routers

    import (
    	"gin/login"

    	"github.com/gin-gonic/gin"
    )

    func initLogin(group *gin.RouterGroup) {
    	v1 := group.Group("v1")
    	{
    		v1.GET("login", login.Login) // 暂时模拟登录
    	}
    }

在路由中应用中间件

  • routes.go
    1
    2
    3
    4
    5
    6
    7
    8
    9
    10
    11
    12
    13
    14
    15
    16
    17
    18
    19
    20
    21
    package routers

    import (
    	"gin/middleware"

    	"github.com/gin-gonic/gin"
    )

    func InitRouters(r *gin.Engine) {
    	api := r.Group("/api")
    	api.Use(middleware.Cors(), middleware.Auth()) // 添加中间件
    	initCourse(api)
    	initUser(api)
    	initUpload(api)

        // 下面的接口不需要鉴权就能使用，如登录接口
    	notAuthApi := r.Group("/api")
    	notAuthApi.Use(middleware.Cors()) // 添加中间件
    	initLogin(notAuthApi)
    }

测试身份认证

  • 模拟登录
    alt text

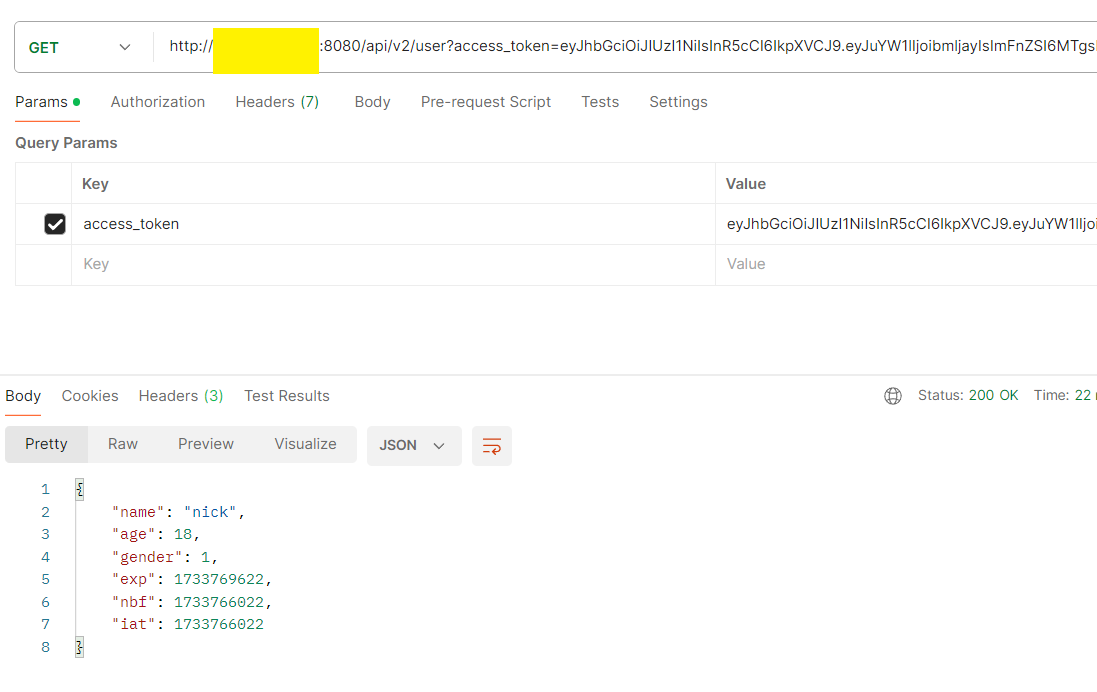

  • 使user v2 api返回鉴权数据
  • user_v2.go
    1
    2
    3
    4
    5
    6
    7
    8
    9
    10
    11
    12
    13
    14
    15
    16
    17
    18
    19
    20
    package user

    import (
    	"net/http"

    	"github.com/gin-gonic/gin"
    )

    func AddV2(c *gin.Context) {
    	c.JSON(http.StatusOK, gin.H{
    		"method": c.Request.Method,
    		"path":   c.Request.URL.Path,
    	})
    }

    func GetV2(c *gin.Context) {
    	authInfo, _ := c.Get("auth_info")
    	c.JSON(http.StatusOK, authInfo)
    }

    alt text
  • 此时访问其他接口时，不加token会返回403Forbidden

Protobuf消息传输

定义消息

1
2
3
4
5
6
7
8
9
10
11
syntax = "proto3";

package course;

option go_package = "gin/course";

message AddCourseResponse{
    string name = 1;
    string teacher = 2;
    int32 duratioin = 3;
}

生成代码

1
protoc -I . --go_out=. --go_opt=paths=source_relative ./course/course.proto

使用protobuf格式返回数据

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
package course

import (
	"net/http"

	"github.com/gin-gonic/gin"
)

// 定义模型
type course struct {
	// 手动指明表单里面写的字段名，否则就是Name, binding是做一些校验的地方，这里是必填+字母
	Name     string `form:"name" binding:"required,alphaunicode"`
	Teacher  string `form:"teacher" binding:"required,alphaunicode"` // 手动指明json里面写的字段名，否则就是Teacher
	Duration int    `form:"duration" binding:"number"`
}

func Add(c *gin.Context) {
	req := &course{}
	// 只能取到x-www-form-urlencoded的表单值，不能取到form-data和json的值
	err := c.ShouldBind(req) // 带should的，假如没有从form表单中取到值，就返回一个错误
	// c.Bind()
	if err != nil {
		c.JSON(http.StatusInternalServerError, gin.H{
			"error": err.Error(),
		})
		return
	}
	// 使用protobuf格式返回 , out一定得是指针类型
	out := &AddCourseResponse{
		Name:      req.Name,
		Teacher:   req.Teacher,
		Duratioin: int32(req.Duration),
	}
	c.ProtoBuf(http.StatusOK, out)
	// c.JSON(http.StatusOK, req)
}

测试结果(protobuf反序列化)

  • client/main.go
    1
    2
    3
    4
    5
    6
    7
    8
    9
    10
    11
    12
    13
    14
    15
    16
    17
    18
    19
    20
    21
    22
    23
    24
    25
    26
    27
    28
    29
    30
    31
    32
    33
    34
    35
    36
    37
    38
    39
    40
    41
    42
    43
    44
    45
    46
    package main

    import (
    	"fmt"
    	"gin/course"
    	"io"
    	"log"
    	"net/http"
    	"net/url"
    	"strings"

    	"google.golang.org/protobuf/proto"
    )

    // 仅仅是为了验证protobuf传递的返回的正确性
    func main() {
    	uri := "http://localhost:8080/api/v1/course"
    	method := "POST"
    	v := url.Values{}
    	v.Add("name", "golang")
    	v.Add("teacher", "lin")
    	v.Add("duration", "200")
    	payload := strings.NewReader(v.Encode())
    	client := &http.Client{}
    	req, err := http.NewRequest(method, uri, payload)
    	if err != nil {
    		log.Println(err)
    		return
    	}
    	req.Header.Add("access_token", "eyJhbGciOiJIUzI1NiIsInR5cCI6IkpXVCJ9.eyJuYW1lIjoibmljayIsImFnZSI6MTgsImdlbmRlciI6MSwiZXhwIjoxNzMzNzcwNTI3LCJuYmYiOjE3MzM3NjY5MjcsImlhdCI6MTczMzc2NjkyN30.ZX3VAVUaDKvMqz20H6ZfZ28RrJx7LQhJf4DVyxS02Ss")
    	req.Header.Add("Content-Type", "application/x-www-form-urlencoded")
    	res, err := client.Do(req)
    	if err != nil {
    		log.Println(err)
    		return
    	}
    	defer res.Body.Close()
    	body, err := io.ReadAll(res.Body)
    	if err != nil {
    		log.Println(err)
    		return
    	}
    	out := &course.AddCourseResponse{}
    	err = proto.Unmarshal(body, out)
    	fmt.Println(out, err)
    }
2024-12-09 该篇文章被 Cleofwine 归为分类: Go云原生

上一篇：【go工程组件】高性能消息传输协议Protobuf 下一篇：【go工程组件】高性能RPC框架gRPC
© 2023-2026 Cleofwine / Email / GitHub / 浙ICP备2024136127号
🌙赠我弯弯一枚月，也赠予我晚星⭐ 本站由Hexo驱动｜使用Hexo-theme-A4主题
