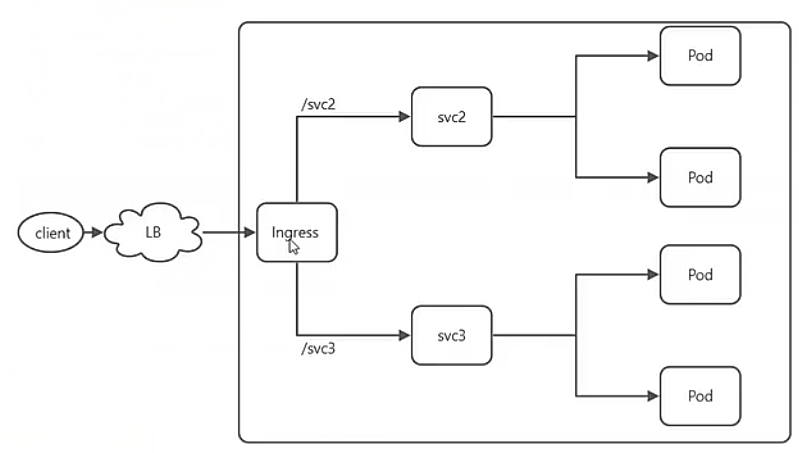

        3. ingress扇出

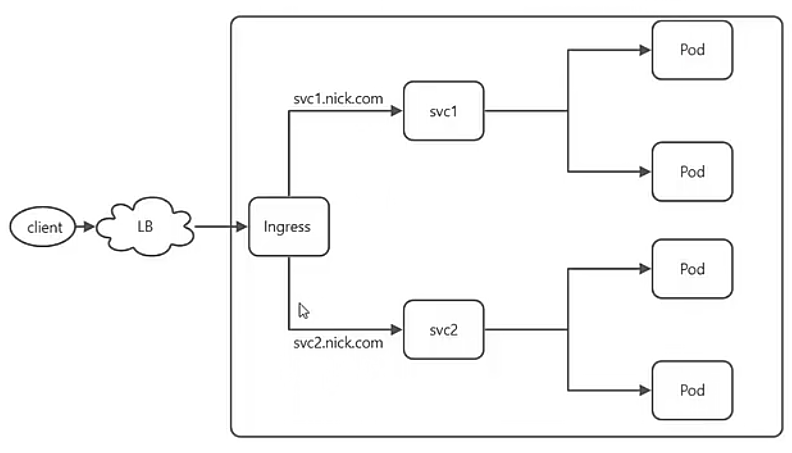

        4. ingress基于名称虚拟托管
        5. Ingress TLS
    3. 使用MetaILB作为外部负载均衡
      1. service LoadBalancer
      2. Ingress基于名称虚拟托管

Kubernetes Service

  • 将运行在一组pods上的应用程序公开为网络服务的抽象方法，这里的网络服务其实就是我们经常提起的微服务。

Service

service定义

  • myapp-svc.yaml
    1
    2
    3
    4
    5
    6
    7
    8
    9
    10
    11
    12
    13
    14
    15
    16
    17
    18
    19
    20
    21
    apiVersion: v1
    kind: Service
    metadata:
        name: myapp-svc
    spec:
        type: ClusterIP # service发布类型
        ports: # 指定端口数组可以指定多个
            - protocol: TCP
                name: http
                port: 8080
                targetPort: 80
            - protocol: TCP
                name: https
                port: 443
                targetPort: 80
            - protocol: TCP
                name: redis-tcp
                port: 6379
                targetPort: 6379
        selector: # 标签选择器，用来匹配pod的
          name: myapp
  • type表示service发布类型
    1. ClusterIP：自动分配一个仅clusterIP内部可以访问的虚拟ip地址
    2. NodePort：在ClusterIP基础上为Service在每台机器上绑定一个端口，这样就可以通过节点IP：NodePort来访问服务
    3. ExternalName：将服务映射到DNS名称，把集群外部的服务引入到集群内部来使用
    4. LoadBalancer：使用云厂商提供的外部负载均衡器，来自外部负载均衡器的流量将直接重定位到后端Pod上。
  • myapp-deployment.yaml
    1
    2
    3
    4
    5
    6
    7
    8
    9
    10
    11
    12
    13
    14
    15
    16
    17
    18
    19
    20
    21
    22
    23
    24
    25
    26
    27
    28
    29
    30
    31
    32
    33
    34
    35
    36
    37
    38
    apiVersion: apps/v1
    kind: Deployment
    metadata:
        name: myapp-deployment
        labels:
            name: myapp
    spec:
        replicas: 5
        selector:
            matchLabels:
                name: myapp
        template:
            metadata:
                labels:
                    name: myapp
            spec:
                containers:
                - name: myhello
                  image: xlhmzch/hello:1.0.0
                  imagePullPolicy: IfNotPresent
                  ports:
                  - containerPort: 80
                  env:
                  - name: env1
                    value: "k8s-env1"
                  - name: env2
                    value: "k8s-env2"
                - name: myredis
                  image: redis
                  imagePillPolicy: IfNotPresent
                  ports:
                  - containerPort: 6379
                  env:
                  - name: env1
                    value: "k8s-env1"
                  - name: env2
                    value: "k8s-env2"

    1
    kubectl apply -f myapp-deployment.yaml

service使用

ClusterIP

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
kubectl apply -f myapp-svc.yaml
kubectl get -f myapp-svc.yaml
kubectl describe -f myapp-svc.yaml

curl http://10.107.21.14:8080 # 使用集群内部ip，只能在内部访问的ip
kubectl run redis --image=redis # 创建一个带有redis-cli工具的pod
kubectl run curl --image=radial/busyboxplus:curl -it # 创建一个带有curl工具的pod
kubectl exec -it curl -- sh # 容器里面通过DNS访问进入交互模式
> nslookup myapp-svc.default.svc.cluster.local # 查看dns记录
> curl http://myapp-svc.default.svc.cluster.local:8080 # 容器内容可以使用dns的访问

kubectl exec -it redis -- bash # 进入redis-cli工具容器中
> redis-cli -h myapp-svc.default.svc.cluster.local -p 6379
> key *
> set key1 abcde
> exit
> redis-cli -h myapp-svc.default.svc.cluster.local -p 6379 # 我们可以发现，是会被负载均衡的，我们有5个redis的pod，她们是独立的
> key * # 没有

NodePort

  • myapp-nodeport-svc.yaml
    1
    2
    3
    4
    5
    6
    7
    8
    9
    10
    11
    12
    13
    14
    15
    16
    17
    18
    19
    20
    21
    22
    23
    24
    apiVersion: v1
    kind: Service
    metadata:
        name: myapp-nodeport-svc
    spec:
        type: NodePort # service发布类型
        ports: # 指定端口数组可以指定多个
            - protocol: TCP
                name: http
                port: 8080
                targetPort: 80
                nodePort: 31490 # 节点端口，范围30000-32767
            - protocol: TCP
                name: https
                port: 443
                targetPort: 80
                nodePort: 30108 # 假如这里不指定，k8s会自动帮我们申请一个
            - protocol: TCP
                name: redis-tcp
                port: 6379
                targetPort: 6379
                nodePort: 31542
        selector: # 标签选择器，用来匹配pod的
          name: myapp
    1
    2
    3
    4
    kubectl apply -f myapp-nodeport-svc.yaml
    kubectl get -f myapp-nodeport-svc.yaml
    curl http://10.98.31.21:8080/ping # 通过集群内部ip，是可以的
    curl http://192.168.239.142:31490/ping # 通过节点ip，访问，此时是需要节点端口的

ExternalName

  • externalname-svc.yaml
    1
    2
    3
    4
    5
    6
    7
    apiVersion: v1
    kind: Service
    metadata:
        name: externalname-svc
    spec:
        type: ExternalName
        externalName: www.baidu.com
    1
    2
    3
    4
    5
    6
    7
    kubectl apply -f externalname-svc.yaml
    kubectl get -f externalname-svc.yaml
    kubectl describe -f externalname-svc.yaml

    kubectl exec -it curl -- sh # 容器里面通过DNS访问进入交互模式
    > ping externalname.default.svc.cluster.local # 其实就是在ping www.baidu.com
    > curl -k https://externalname.default.svc.cluster.local # 像使用内部service的方式使用外部服务

LoadBalancer

  • my-loadbalancer-svc.yaml
    1
    2
    3
    4
    5
    6
    7
    8
    9
    10
    11
    12
    apiVersion: v1
    kind: Service
    metadata:
        name: my-loadbalancer-svc
    spec:
        selector:
            name: myapp
        ports:
            - protocol: TCP
                port: 8080
                targetPort: 80
            type: LoadBalancer
    1
    2
    3
    4
    5
    kubectl apply -f my-loadbalancer-svc.yaml
    kubectl get -f my-loadbalancer-svc.yaml
    kubectl describe -f my-loadbalancer-svc.yaml # 我们发现EXTERNAL-IP处于pending状态，所以我们的service会去等待云厂商的返回
    curl http://10.98.31.21:8080/ping # 通过集群内部ip，是可以的
    curl http://192.168.239.142:31490/ping # 通过节点ip，访问,也是可以的，而且k8s自动为我们创建了节点端口

没有选择符的service

  • 没有选择符的service需要手动配置endpoints
    1
    2
    3
    4
    5
    6
    # 找一个非集群内的机器, ip 192.168.239.149
    docker run -d -p 80:80 --name myhello xlhmzch/hello:1.0.0
    curl http://localhost/ping

    # 集群内运行，其集群内部ip是10.244.2.69
    kubectl run myhello-noselector --image=xlhmzch/hello:1.0.0
  • notselector-svc.yaml
    1
    2
    3
    4
    5
    6
    7
    8
    9
    apiVersion: v1
    kind: Service
    metadata:
        name: notselector-svc
    spec:
        ports:
            - protocol: TCP
                port: 8080
                targetPort: 80
    1
    2
    3
    4
    kubectl apply -f notselector-svc.yaml
    kubectl get -f notselector-svc.yaml
    kubectl describe -f notselector-svc.yaml # 没有选择符，所以也没有endpoint
    # 手动创建一个endpoint资源
  • notselector-points.yaml
    1
    2
    3
    4
    5
    6
    7
    8
    9
    10
    11
    12
    13
    apiVersion: v1
    kind: Endpoints
    metadata:
        name: notselector-svc # 这里的name必须和service的name相同
    subsets:
        - addresses:
            - ip: 192.168.239.149
          ports:
            - port: 80
        - addresses:
            - ip: 10.244.2.69
          ports:
            - port: 80
    1
    2
    3
    4
    kubectl apply -f notselector-points.yaml
    kubectl get -f notselector-points.yaml
    kubectl describe -f notselector-svc.yaml # 我们的service已经有endpoint了
    curl http://10.107.177.87:8080/ping # 通过service访问，可以被负载到刚在在集群外的那个docker也可以负载到集群内刚才那个pod

无头Service

  1. 无头 Service 并不会分配 Cluster IP， kube—proxy 不会处理它们，而且平台也不会为它们进行负载均衡和路由。
  2. 无头service不能通过集群IP访问，因为没有集群IP
  3. 无头service不能通过dns名称访问，因为没有负载均衡等操作
  4. 无头service的DNS记录是返回服务下所有endpoint，正常service是返回ClusterlP

有选择符的service

  • myapp-headless-svc.yaml
    1
    2
    3
    4
    5
    6
    7
    8
    9
    10
    11
    12
    13
    14
    apiVersion: v1
    kind: Service
    metadata:
        name: myapp-headless-svc
    spec:
        clusterIP: None
        type: ClusterIP
        selector:
            name: myapp
        ports:
            - protocol: TCP
                name: http
                port: 8080
                targetPort: 80
    1
    2
    3
    4
    5
    kubectl apply -f myapp-headless-svc.yaml
    kubectl get -f myapp-headless-svc.yaml
    kubectl describe -f myapp-headless-svc.yaml # 没有集群ip
    kubectl exec -it curl -- bash # 无头service只能通过dns去访问了
    > nsloopup myapp-headless-svc.default # 会返回一个ip地址列表，无头service经常配合有状态的应用程序来使用，由应用程序状态来决定访问哪个域名

无选择符的service

  • 和普通的无选择符service一样，需要手动创建endpoint，为service手动创建endpoint后，其余和有选择符的无头service基本一样。

服务发现机制

DNS

1
2
kubectl exec -it curl -- sh # 进入curl pod
> nslookup myapp-svc # 通过service名称找集群ip地址

环境变量

  • 必须先有service，才能在pod新建时将service注册到pod的环境变量中
    1
    2
    3
    kubectl exec myapp-deployment-oqiwnetoh -- printenv | grep SERVICE # 查看pod的环境变量，假设是service创建之前创建的就没有service的环境变量
    kubectl rollout restart deployment myapp-deployment # 重启deployment
    kubectl exec myapp-deployment-oqiwnetoh -- printenv | grep SERVICE # 再查看应该就有了

service TLS

  • nginx-default.conf
    1
    2
    3
    4
    5
    6
    7
    8
    9
    10
    11
    12
    server {
        listen 80 default_server;
        listen [::]:80 default_server ipv6only=on;
        listen 443 ssl;
        root /usr/share/nginx/html;
        index index.html;

        server_name localhost;
        ssl_certificate /etc/nginx/ssl/tls.crt; ssl_certificate_key /etc/nginx/ss1/tls.key; location /{
            try_files $uri $uri/ =404;
        }
    }
    1
    2
    3
    4
    5
    6
    7
    # 将nginx配置文件创建为configmap
    kubectl create configmap nginxconfigmap --from-file=nginx-default.conf
    # 生成自签名证书
    openssl req -x509 -nodes -days 365 -newkey rsa:2049 -keyout /tmp/nginx.key -out /tmp/nginx.crt -subj "/CN=my-nginx-svc.default.svc.cluster.local/0=my-nginx"
    # 对密钥实施base64编码
    cat /tmp/nginx.crt | base64
    cat /tmp/nginx.key | base64
  • nginxsecret.yaml
    1
    2
    3
    4
    5
    6
    7
    8
    9
    apiVersion: "v1"
    kind: "Secret"
    metadata:
        name: "nginxsecret"
        namespace: "default"
    type: kubernetes.io/tls
    data:
        tls.crt: "aldskmiognapignoierngopqniergopnier"
        tls.key: "qoiegnoqgnorpiqnp3irugnpqirognpqirug"
    1
    kubectl apply -f nginxsecret.yaml
  • my-nginx-deployment.yaml
    1
    2
    3
    4
    5
    6
    7
    8
    9
    10
    11
    12
    13
    14
    15
    16
    17
    18
    19
    20
    21
    22
    23
    24
    25
    26
    27
    28
    29
    30
    31
    32
    apiVersion: apps/v1
    kind: Deployment
    metadata:
        name: my-nginx-deployment
    spec:
        selector:
            matchLabels:
                run: my-nginx
        replicas: 1
        template:
            metadata:
                labels:
                    run: my-nginx
            spec:
                volumes:
                - name: secret-volume
                    secret:
                    secretName: nginxsecret
                - name: configmap-volume
                    configMap:
                        name: nginxconfigmap
                containers:
                - name: nginxhttps
                    image: nginx
                    ports:
                    - containerPort: 443
                    - containerPort: 80
                volumeMounts:
                - mountPath: /etc/nginx/ssl
                    name: secret-volume
                - mountPath: /etc/nginx/conf.d
                    name: configmap-volume
  • my-nginx-svc.yaml
    1
    2
    3
    4
    5
    6
    7
    8
    9
    10
    11
    12
    13
    14
    15
    16
    17
    18
    apiVersion: v1
    kind: Service
    metadata:
        name: my-nginx-svc
        labels:
            run: my-nginx-svc
    spec:
        type: NodePort
        ports:
        - port: 8080
            targetPort: 80
            protocol: TCP
            name: http
        - port: 443
            protocol: TCP
            name: https
        selector:
            run: my-nginx
  • curl-deployment.yaml
    1
    2
    3
    4
    5
    6
    7
    8
    9
    10
    11
    12
    13
    14
    15
    16
    17
    18
    19
    20
    21
    22
    23
    24
    25
    26
    27
    28
    apiVersion: apps/v1
    kind: Deployment
    metadata:
        name: curl-deployment
    spec:
        selector:
            matchLabels:
                app: curlpod
        replicas: 1
        template:
            metadata:
                labels:
                    app: curlpod
            spec:
                volumes:
                -name: secret-volume
                    secret:
                        secretName: nginxsecret
                containers:
                - name: curlpod
                    command:
                    - sh
                    - -c
                    - while true; do sleep 1; done
                    image: radial/busyboxplus: curl
                    volumeMounts:
                    - mountPath: /etc/nginx/ssl
                        name: secret-volume
    1
    2
    3
    4
    5
    6
    7
    8
    9
    10
    kubectl apply -f my-nginx-deployment.yaml
    kubectl apply -f my-nginx-svc.yaml
    kubectl get -f my-nginx-svc.yaml # 查看集群ip
    curl http://10.100.180.94:8080
    curl https://10.100.180.94:443 # 不行，证书和域名不一致

    kubectl apply -f curl-deployment.yaml
    kubectl exec -it curlpod -- sh
    > curl https://my-nginx-svc.default.svc.cluster.local --cacert /etc/nginx/ssl/tls.crt
    > curl https://10.111.168.64 --cacert /etc/nginx/ssl/tls.crt # 通过域名能正常访问，通过ip则提示hostname不匹配

Ingress

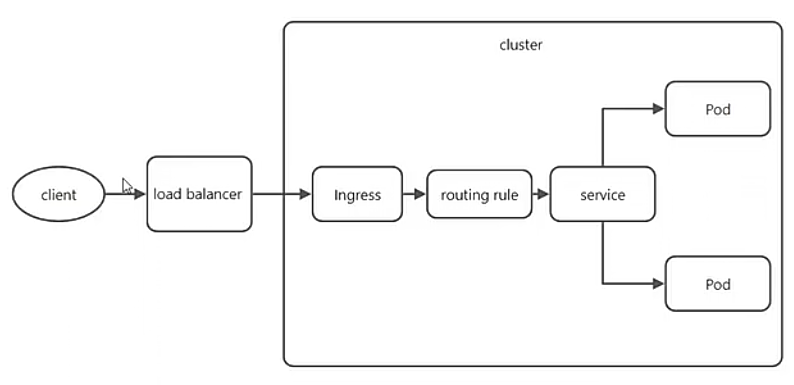

  • 公开从集群外部到集群内服务的HTTP和HTTPS路由。
    alt text

nginx ingress controller

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
# =====================================
# 安装

# 配置一下域名，防止controller没办法down下来
vim /etc/hosts
185.199.108.133 raw.githubusercontent.com

# 我们把配置文件down下来，方便修改
wget https://raw.githubusercontent.com/kubernetes/ingress-nginx/controller-v1.12.0/deploy/static/provider/cloud/deploy.yaml
# 需要修改的配置：
# k8s.gcr.io/ingress-nginx/controller这个改成registry.aliyuncs.com/google_containers/nginx-ingress-controller
# k8s.gcr.io/ingress-nginx/kube-webhook-certgen修改为registry.aliyuncs.com/google_containers/kube-webhook-certgen

# 应用配置
kubectl apply -f deploy.yaml
kubectl get -f deploy.yaml

# 将nginx ingress controller设置为默认的ingress controller
kubectl edit -n ingress-nginx ingressclasses.networking.k8s.io nginx
> annotations:
>   ingressclass.kubernets.io/is-default-class: "true"
kubectl get -f deploy.yaml

# =====================================
# 使用
# 查看nginx ingress controller的conf
kubectl exec -n ingress-nginx -it pod/ingress-nginx-controller-oingqoirthpqoerih -- bash
> vi nginx.conf
> ps # 可以看到就是运行的一个nginx，只是不是普通的nginx，而是经过ingress定向优化的nginx

ingress的使用

准备三组service

  • mysvc1-deployment.yaml
    1
    2
    3
    4
    5
    6
    7
    8
    9
    10
    11
    12
    13
    14
    15
    16
    17
    18
    19
    20
    21
    22
    23
    apiVersion: apps/v1
    kind: Deployment
    metadata:
        name: mysvc1-deployment
    spec:
        selector:
            matchLabels:
                app: mysvc1-app
        replicas: 2
        template:
            metadata:
                labels:
                    name: mysvc1-app
            spec:
                containers:
                - name: myhello
                    image: xlhmzch/hello:1.0.2
                    imagePullPolicy: IfNotPresent
                    ports:
                    - containerPort: 80
                    env:
                    - name: env1
                        value: "myservice1"
  • mysvc1.yaml
    1
    2
    3
    4
    5
    6
    7
    8
    9
    10
    11
    12
    13
    14
    apiVersion: v1
    kind: Service
    metadata:
        name: mysvc1
        labels:
            name: mysvc1-app
    spec:
        ports:
        - port: 8081
            protocol: TCP
            targetPort: 80
            name: http
        selector:
            name: mysvc1-app
    1
    2
    3
    4
    kubectl create -f mysvc1-deployment.yaml
    kubectl create -f mysvc1.yaml
    kubectl get -f mysvc1.yaml
    curl http://10.108.195.227:8081/print/env
  • 按照上述步骤，定义mysvc2（8082，环境变量myservice2）和mysvc3（8083，myservice3），并创建好三组服务。

暴露单个service

  • default-backend-ingress.yaml
    1
    2
    3
    4
    5
    6
    7
    8
    9
    10
    apiVersion: networking.k8s.io/v1
    kind: Ingress
    metadata:
        name: default-backend-ingress
    spec:
        defaultBackend: # 默认的后端，所有规则都没有匹配上的时候
            service:
                name: mysvc1 # 所有的未匹配都到mysvc1上
                port:
                    number: 80
    1
    2
    3
    4
    5
    kubectl create -f defaultBackend-ingress.yaml
    kubectl get -f defaultBackend-ingress.yaml
    # 发现hosts是*，所以所有域名都匹配这条
    kubectl get -n ingress-nginx svc # 找到LoadBalancer，这里就是我们集群的入口
    curl http://10.111.20.126:80/print/env # 从入口进入，现在会转发到mysvc1

ingress扇出

  • 一个扇出（fanout）配置根据请求的HTTP URI将来自同一IP地址的流量路由到多个Service。
    alt text
  • fanout-ingress.yaml
    1
    2
    3
    4
    5
    6
    7
    8
    9
    10
    11
    12
    13
    14
    15
    16
    17
    18
    19
    20
    21
    22
    23
    24
    25
    apiVersion: networking.k8s.io/v1
    kind: Ingress
    metadata:
        annotations:
            nginx.ingress.kubernetes.io/rewrite-target: "/$1"
        name: fanout-ingress
    spec
        rules:
        - host: www.icu.com # 如果注释掉这个，就可以通过ip访问了，否则不行
            http:
                paths:
                - path: /svc2/(.*)$
                    pathType: Prefix
                    backend:
                        service:
                            name: mysvc2
                            port:
                                number: 8082
                - path: /svc3/(.*)$
                    pathType: Prefix
                    backend:
                        service:
                            name: mysvc3
                            port:
                                number: 8083
    1
    2
    3
    4
    5
    6
    7
    8
    9
    10
    11
    kubectl apply -f fanout-ingress.yaml
    kubectl get -f fanout-ingress.yaml # 有了host，就不能用ip访问了
    kubectl get -n ingress-nginx pod
    kubectl exec -n ingress-nginx -it pod/ingress-nginx-controller-noqihetoq -- bash # 进入到controller
    >  vim nginx.conf # 我们发现配置的路由生效了

    curl http://10.111.20.126/svc2/print/env # 发现没生效，直接去了默认的匹配mysvc1上去了，因为没有加域名
    vim /etc/hosts
    > 10.111.20.126 www.icu.com  # 加上集群ip（ingress controller）的映射，我们发现我们通过ingress，所有的访问都可以只使用成集群入口的访问了
    curl http://www.icu.com/svc2/print/env
    curl http://www.icu.com/svc3/print/env

ingress基于名称虚拟托管

alt text

  • hostname-ingress.yaml
    1
    2
    3
    4
    5
    6
    7
    8
    9
    10
    11
    12
    13
    14
    15
    16
    17
    18
    19
    20
    21
    22
    23
    24
    25
    26
    apiVersion: networking.k8s.io/v1
    kind: Ingress
    metadata:
        name: hostname-ingress
    spec
        rules:
        - host: svc1.icu.com
            http:
                paths:
                - path: /
                    pathType: Prefix
                    backend:
                        service:
                            name: mysvc1
                            port:
                                number: 8081
        - host: svc2.nick.com
            http:
                paths:
                - path: /
                    pathType: Prefix
                    backend:
                        service:
                            name: mysvc2
                            port:
                                number: 8082
    1
    2
    3
    4
    5
    6
    7
    8
    kubectl apply -f hostname-ingress.yaml
    kubectl get -f hostname-ingress.yaml
    vim /etc/hosts
    > 10.111.20.126 svc1.icu.com
    > 10.111.20.126 svc2.icu.com

    curl http://svc1.icu.com/print/env
    curl http://svc2.icu.com/print/env

Ingress TLS

  • 注意事项
  1. 自签证书中的CN字段必须为全限定域名，例如：https-www.icu.com
  2. 自签证书中的CN字段必须与ingress定义中rules.host匹配
  3. ingress定义中tls.hosts字段的值必须与rules.host完全匹配
  4. TLSSecret的数据中必须包含用于TLS的以键名tls.crt保存的证书和以键名tls.key保存的私钥，即tls.crt为键 值保存证书，tls.key为键值保存私钥
    1
    2
    3
    4
    5
    # 生成自签名证书
    openssl req -x509 -nodes -days 365 -newkey rsa:2048 -keyout /tmp/fanouttls.key -out /tmp/fanouttls.crt -subj "/CN=https-www.icu.com/0=https-www.icu.com"
    # 对密钥实施base64编码
    cat /tmp/fanouttls.crt | base64
    cat /tmp/fanouttls.key | base64
  • fanout-ingress-tls-secret.yaml
    1
    2
    3
    4
    5
    6
    7
    8
    9
    apiVersion: v1
    kind: Secret
    metadata:
        name: fanout-ingress-tls
        namespace: default
    type: kubernetes.io/tls
    data:
        tls.crt: "aldskmiognapignoierngopqniergopnier"
        tls.key: "qoiegnoqgnorpiqnp3irugnpqirognpqirug"
    1
    2
    kubectl apply -f fanout-ingress-tls-secret.yaml
    kubectl get -f fanout-ingress-tls-secret.yaml
  • fanout-tls-ingress.yaml
    1
    2
    3
    4
    5
    6
    7
    8
    9
    10
    11
    12
    13
    14
    15
    16
    17
    18
    19
    20
    21
    22
    23
    24
    25
    26
    27
    28
    29
    apiVersion: networking.k8s.io/v1
    kind: Ingress
    metadata:
        annotations:
            nginx.ingress.kubernetes.io/rewrite-target: "/$1"
        name: fanout-tls-ingress
    spec
        tls:
        - hosts:
            - https-www.icu.com
            secretName: fanout-ingress-tls
        rules:
        - host: https-www.icu.com
            http:
                paths:
                - path: /svc2/(.*)$
                    pathType: Prefix
                    backend:
                        service:
                            name: mysvc2
                            port:
                                number: 8082
                - path: /svc3/(.*)$
                    pathType: Prefix
                    backend:
                        service:
                            name: mysvc3
                            port:
                                number: 8083
    1
    2
    3
    4
    5
    6
    kubectl create -f fanout-tls-ingress.yaml
    vim /etc/hosts
    > 10.111.20.126 https-www.icu.com
    curl -k https://https-www.icu.com/svc2/print/env # -k跳过校验
    curl https://https-www.icu.com/svc2/print/env --cacert /tmp/fanouttls.crt # 进行校验访问
    curl https://https-www.icu.com/svc3/print/env --cacert /tmp/fanouttls.crt # 进行校验访问

使用MetaILB作为外部负载均衡

  • 功能就是替代云厂商，实现逻辑k8s得负载均衡器
    1
    2
    3
    4
    5
    6
    7
    8
    9
    10
    11
    # 编辑kube-proxy配置箱
    kubectl edit cm kube-proxy -n kube-system
    > mode: "ipvs"
    > ipvs:
    >   strictARP: true
    kubectl rollout restart ds/kube-proxy -n kube-system # 重启下kube-proxy

    # 安装MetaILB
    vim /etc/hosts
    > 185.199.108.133 raw.githubusercontent.com # 需要自己查一下可以联通的地址
    kubectl apply -f https://raw.githubusercontent.com/metallb/metallb/v0.14.9/config/manifests/metallb-native.yaml
  • metallb-config.yaml
    1
    2
    3
    4
    5
    6
    7
    8
    9
    10
    apiVersion: metallb.io/v1beta1
    kind: IPAddressPool
    metadata:
        name: first-pool
        namespace: metallb-system
    spec:
        addresses:
            - 192.168.10.0/24
            - 192.168.9.1-192.168.9.5
            - fc00:f853:0ccd:e799::/124

service LoadBalancer

1
2
3
kubectl get -n ingress-nginx svc # 发现ingress-nginx-controller的EXTERNAL-IP是pending，说明在等待外部工具创建负载均衡
kubectl apply -f metallb-config.yaml
kubectl get -n ingress-nginx svc # 发现ingress-nginx-controller的EXTERNAL-IP是有得了
  • myapp-deployment.yaml
    1
    2
    3
    4
    5
    6
    7
    8
    9
    10
    11
    12
    13
    14
    15
    16
    17
    18
    19
    20
    21
    22
    23
    24
    25
    26
    27
    28
    29
    30
    apiVersion: apps/v1
    kind: Deployment
    metadata:
        name: myapp-deployment
        labels:
            name: myapp
    spec:
        replicas: 5
        selector:
            matchLabels:
                name: myapp
        template:
            metadata:
                labels:
                    name: myapp
            spec:
                containers:
                - name: myhello
                  image: xlhmzch/hello:1.0.0
                  imagePullPolicy: IfNotPresent
                  ports:
                  - containerPort: 80
                  env:
                  - name: env1
                    value: "k8s-env1"
                  - name: env2
                    value: "k8s-env2"
                  - name: env3
                    value: "k8s-env3"

    1
    kubectl apply -f myapp-deployment.yaml
  • my-loadbalancer-svc.yaml
    1
    2
    3
    4
    5
    6
    7
    8
    9
    10
    11
    12
    apiVersion: v1
    kind: Service
    metadata:
        name: my-loadbalancer-svc
    spec:
        ports:
        - port: 8080
            protocol: TCP
            targetPort: 80
        selector:
            name: myapp
        type: LoadBalancer
    1
    2
    3
    4
    5
    kubectl apply -f my-loadbalancer-svc.yaml
    kubectl get svc # 因为我们的service是LoadBalancer类型，所以MetaILB自动帮我们申请了EXTERNAL-IP地址192.168.10.1，CLUSTER-IP 10.103.09.249

    curl http://192.168.10.1:8080/print/env
    curl http://10.103.09.249:8080/print/env # 是一样得

Ingress基于名称虚拟托管

  • mysvc1-deployment.yaml
    1
    2
    3
    4
    5
    6
    7
    8
    9
    10
    11
    12
    13
    14
    15
    16
    17
    18
    19
    20
    21
    22
    23
    apiVersion: apps/v1
    kind: Deployment
    metadata:
        name: mysvc1-deployment
    spec:
        selector:
            matchLabels:
                app: mysvc1-app
        replicas: 2
        template:
            metadata:
                labels:
                    name: mysvc1-app
            spec:
                containers:
                - name: myhello
                    image: xlhmzch/hello:1.0.2
                    imagePullPolicy: IfNotPresent
                    ports:
                    - containerPort: 80
                    env:
                    - name: env1
                        value: "myservice1"
  • mysvc1.yaml
    1
    2
    3
    4
    5
    6
    7
    8
    9
    10
    11
    12
    13
    14
    apiVersion: v1
    kind: Service
    metadata:
        name: mysvc1
        labels:
            name: mysvc1-app
    spec:
        ports:
        - port: 8081
            protocol: TCP
            targetPort: 80
            name: http
        selector:
            name: mysvc1-app
    1
    2
    3
    4
    kubectl create -f mysvc1-deployment.yaml
    kubectl create -f mysvc1.yaml
    kubectl get -f mysvc1.yaml
    curl http://10.108.195.227:8081/print/env
  • 按照上述步骤，定义mysvc2（8082，环境变量myservice2）。
  • hostname-ingress.yaml
    1
    2
    3
    4
    5
    6
    7
    8
    9
    10
    11
    12
    13
    14
    15
    16
    17
    18
    19
    20
    21
    22
    23
    24
    25
    26
    27
    apiVersion: networking.k8s.io/v1
    kind: Ingress
    metadata:
        name: hostname-ingress
    spec
        ingressClassName: nginx # 这个必须有，否则无法分配ip，k8s需要这个class去分配controller去配置ingress
        rules:
        - host: svc1.icu.com
            http:
                paths:
                - path: /
                    pathType: Prefix
                    backend:
                        service:
                            name: mysvc1
                            port:
                                number: 8081
        - host: svc2.nick.com
            http:
                paths:
                - path: /
                    pathType: Prefix
                    backend:
                        service:
                            name: mysvc2
                            port:
                                number: 8082
    1
    2
    3
    4
    5
    6
    7
    8
    kubectl apply -f hostname-ingress.yaml
    kubectl get -f hostname-ingress.yaml # 我们会发现过一会（因为是异步得，耐心等一下），这个ingress就会被MetaILB分配addresses了
    vim /etc/hosts
    > 192.168.1.240 svc1.icu.com # 这次是分配到MetaILB得地址了，不再是集群地址
    > 192.168.1.240 svc2.icu.com

    curl http://svc1.icu.com/print/env
    curl http://svc2.icu.com/print/env
2025-01-03 该篇文章被 Cleofwine 归为分类: Go云原生

上一篇：个人摄影学习：摄影基础 下一篇：【go云原生】Kubernetes Pod
© 2023-2026 Cleofwine / Email / GitHub / 浙ICP备2024136127号
🌙赠我弯弯一枚月，也赠予我晚星⭐ 本站由Hexo驱动｜使用Hexo-theme-A4主题
